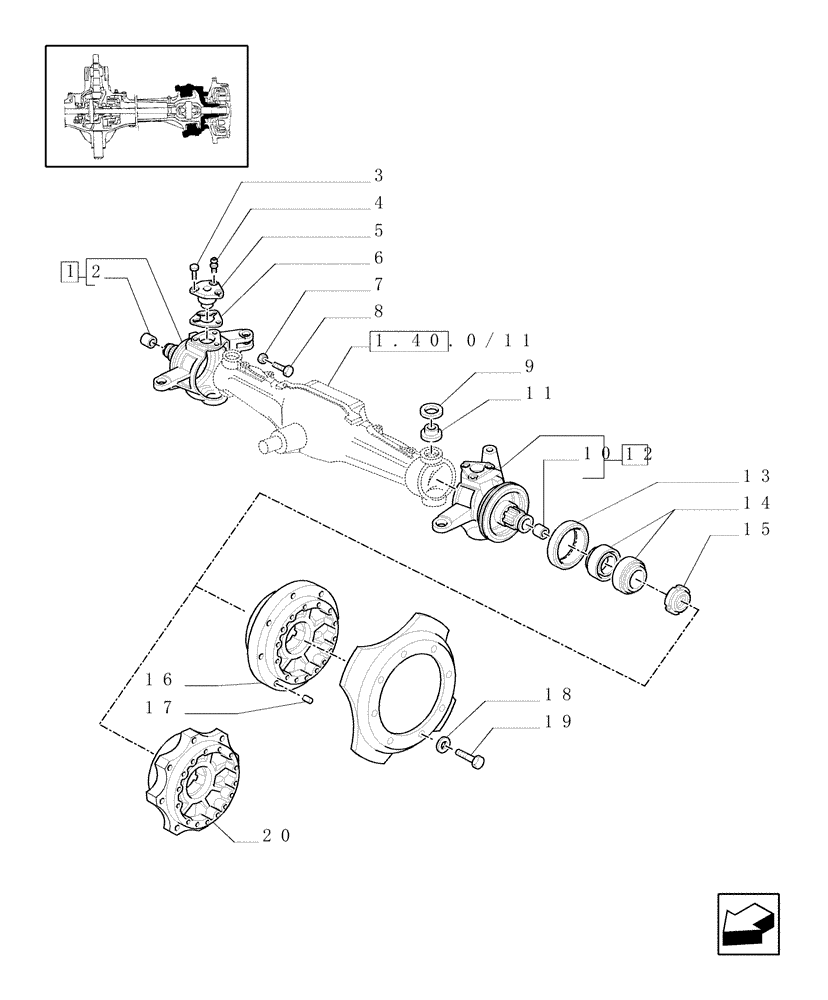

Запчасти Case IH JX80U (1.40.0/22) - (VAR.308-308/1) FRONT AXLE CL.2 HYDR. LOCKING 30-40 KM/H. - STEERING PIVOT PIN (04) - FRONT AXLE & STEERING

1

5171553

KNUCKLE

ASSY. RH

1шт.

2

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

42 x 46 x 28

1шт.

3

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

5

5137239

BALL STUD

BALL PIN

4шт.

6

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

6

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

8

5167638

SCREW

M18X105

2шт.

9

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

70mm OD, 56mm ID, 7.5-10mm Thk

4шт.

10

87525550

BUSHING,42.1mm ID x 46.13mm OD x 28mm L

1шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

4шт.

12

5171552

KNUCKLE,LH

LH

1шт.

13

5177708

SEAL

165 x 190 x 15.5-17

2шт.

14

5136951

TAPERED BEARING,95mm ID x 135mm OD x 20mm W

95 x 135 x 20

4шт.

15

5142020

NUT,Hex, M75 x 2

M75 x 20

2шт.

16

5151461

HUB

, Serial Range: -C5201

2шт.

17

4985063

DOWEL,12mm OD x 20mm L

D = 12X20

2шт.

18

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

19

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

16шт.

20

87341361

HUB

, Start Serial: D5201

2шт.
