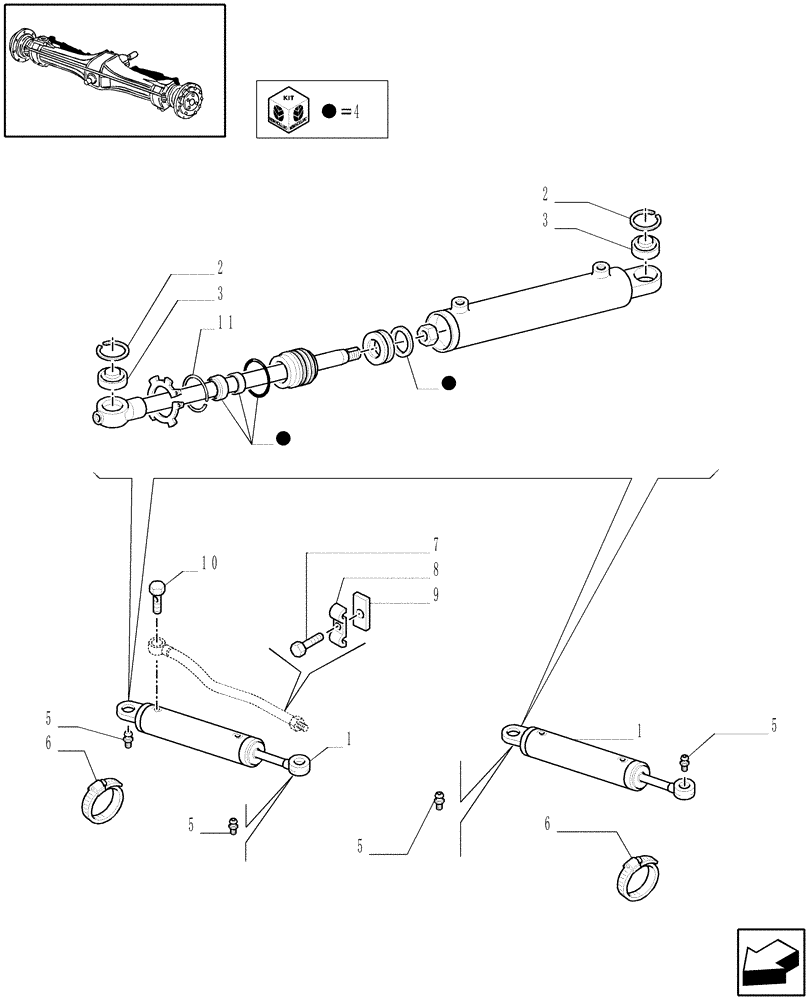

Запчасти Case IH JX80U (1.40.0/126[02]) - (VAR.422) VERSION FOR JAPAN - POWER STEERING CYLINDER, PARTS (04) - FRONT AXLE & STEERING

1

5164023

STEERING CYLINDER,Double Acting, 22mm Rod, 208mm Stroke

2шт.

5164023R

REMAN-HYD CYLINDER

JX80U, JX90U, JX100U all (5/02-)

2шт.

5164023C

CORE-HYD CYLINDER

Return Number

1шт.

2

5190903

LOCKING RING

4шт.

3

5190901

BUSHING

4шт.

4

5190916

SEAL KIT

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

4шт.

6

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

D = 50-70

2шт.

7

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

8

4999554

CLAMP,2 Hoses

2шт.

9

5138294

SUPPORT

2шт.

10

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14X1.5X30, JX90U, JX100U

2шт.

11

5190568

LOCKING RING

1шт.
