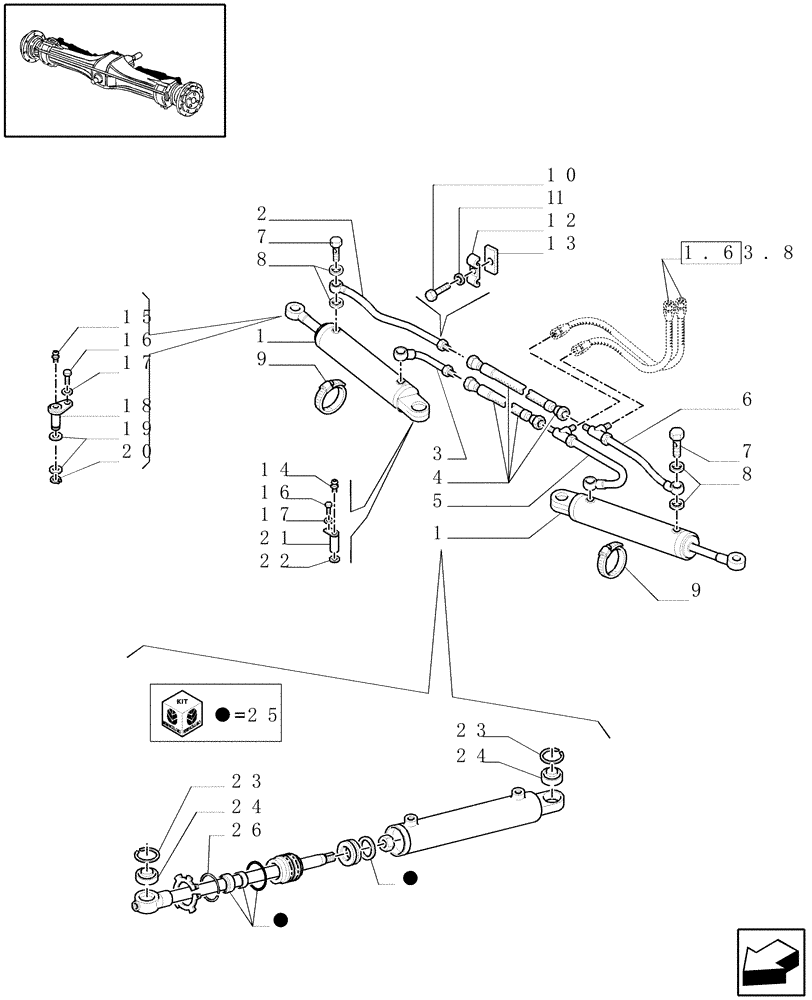

Запчасти Case IH JX80U (1.40.0/125) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR.TRANSM. - POWER STEER. CYLIN. (04) - FRONT AXLE & STEERING

1

5164023

STEERING CYLINDER,Double Acting, 22mm Rod, 208mm Stroke

2шт.

5164023R

REMAN-HYD CYLINDER

JX80U (5/02-)

2шт.

5164023C

CORE-HYD CYLINDER

Return Number

1шт.

2

5174320

HYD TUBE

1шт.

3

5174317

HYD TUBE

1шт.

4

5169237

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R1

2шт.

5

5174315

HYD TUBE

1шт.

6

5174322

HYD TUBE

1шт.

7

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14X1.5X30

4шт.

8

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

8шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

M50-70

2шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

12035670

LOCK WASHER

M6

2шт.

12

4999554

CLAMP,2 Hoses

2шт.

13

5138294

SUPPORT

2шт.

14

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

15

87414

LUBE NIPPLE,1/4" - 28

2шт.

16

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

17

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

18

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

19

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

20

11066876

SNAP RING,M20, Ext

2шт.

21

5142048

PIN,19.98mm x 107.00mm

2шт.

22

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

20.5 x 28 x 16

2шт.

23

5190903

LOCKING RING

4шт.

24

5190901

BUSHING

4шт.

25

5190916

SEAL KIT

2шт.

26

5190568

LOCKING RING

1шт.
