(1.40.0/123[01]) - (VAR.308-308/1) FRONT AXLE CL.2 HYDR. LOCKING 30-40 KM/H. CYLINDERS

Запчасти Case IH JX80U (1.40.0/123[01]) - (VAR.308-308/1) FRONT AXLE CL.2 HYDR. LOCKING 30-40 KM/H.CYLINDERS (04) - FRONT AXLE & STEERING

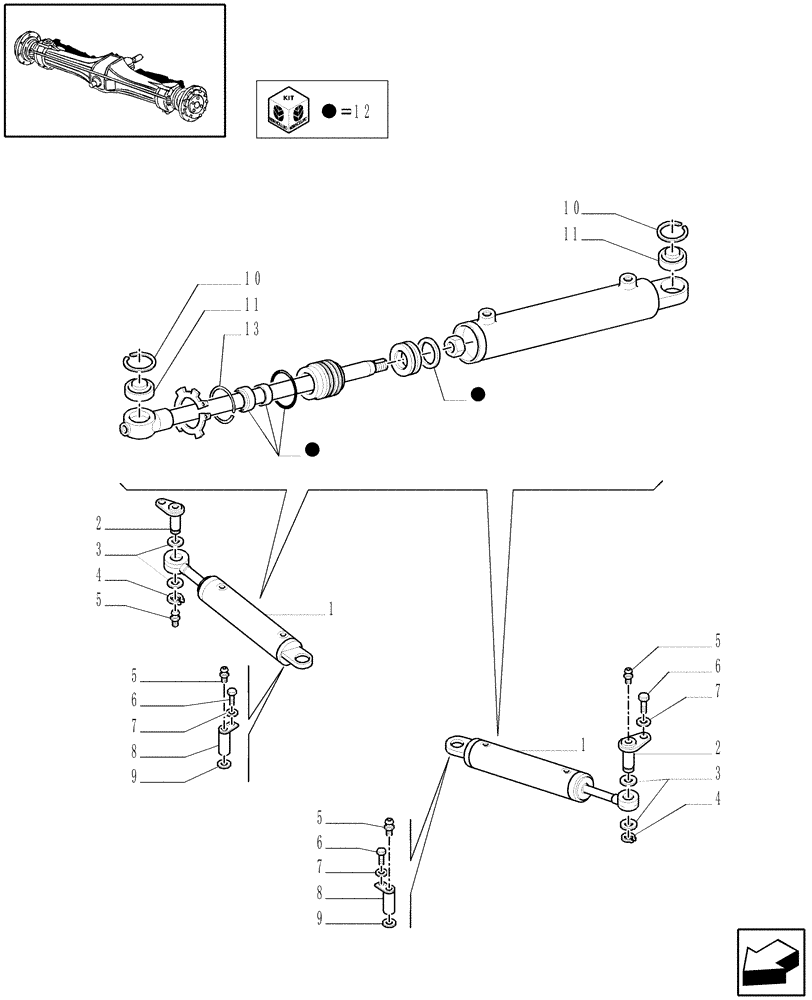

Схема запчастей Case IH JX80U - (1.40.0/123[01]) - (VAR.308-308/1) FRONT AXLE CL.2 HYDR. LOCKING 30-40 KM/H. CYLINDERS (04) - FRONT AXLE & STEERING
5
12
7
5
8
1
8
3
1
12
1
12
7
2
10
3
12
6
4
1
2
5
9
10
1
6
9
3
4
5
7
1
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5164023

STEERING CYLINDER,Double Acting, 22mm Rod, 208mm Stroke

2шт.

5164023R

REMAN-HYD CYLINDER

JX80U (5/02-)

2шт.

5164023C

CORE-HYD CYLINDER

Return Number

1шт.

2

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

3

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

4

11066876

SNAP RING,M20, Ext

2шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

5

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.

6

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

7

17798274

WASHER

2шт.

8

5142048

PIN,19.98mm x 107.00mm

2шт.

9

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

2шт.

10

5190903

LOCKING RING

4шт.

11

5190901

BUSHING

4шт.

12

5190916

SEAL KIT

2шт.

13

5190568

LOCKING RING

1шт.
