Запчасти Case IH JX80U (1.40.0/12[02]) - FRONT AXLE - HYDRAULIC STEERING CYLINDER - 4WD - PARTS (04) - FRONT AXLE & STEERING

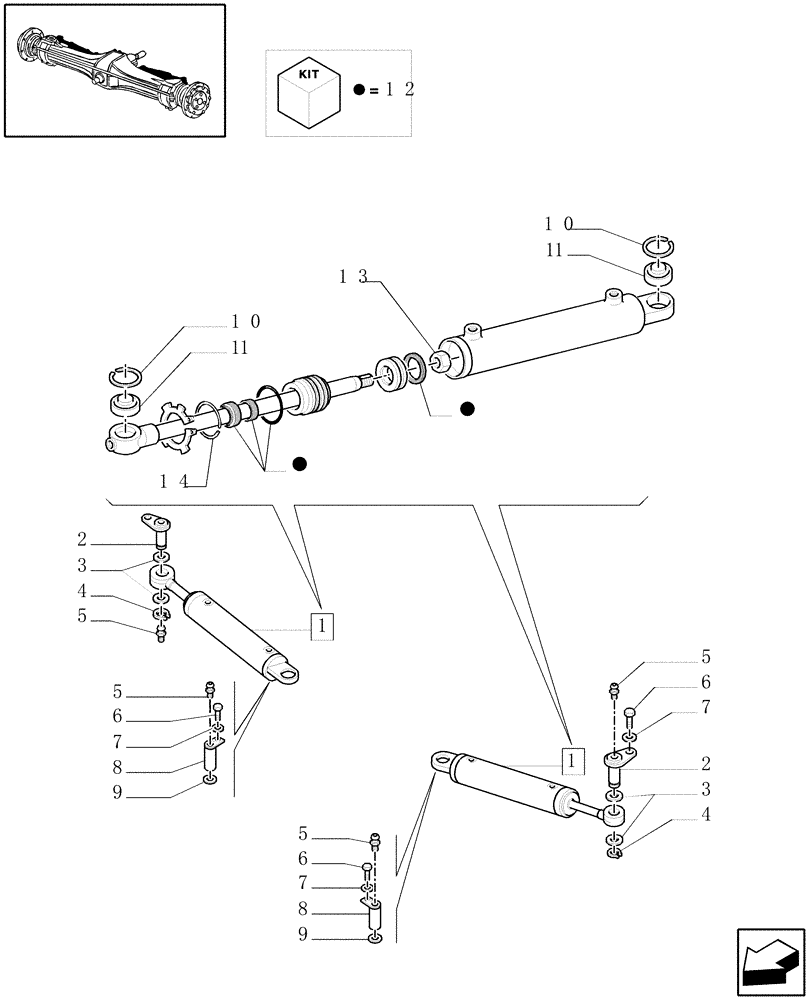

Схема запчастей Case IH JX80U - (1.40.0/12[02]) - FRONT AXLE - HYDRAULIC STEERING CYLINDER - 4WD - PARTS (04) - FRONT AXLE & STEERING
1
4
6
1
5
8
5
7
10
1
13
6
3
8
2
4
12
9
1
1
12
3
7
2
10
5
7
5
1
9
12
6
14
12

Артикул

Название

Примечание

Количество

1

5164023

STEERING CYLINDER,Double Acting, 22mm Rod, 208mm Stroke

2шт.

5164023R

REMAN-HYD CYLINDER

JX80U, JX90U, JX100U all (5/02-)

2шт.

5164023C

CORE-HYD CYLINDER

Return Number

1шт.

2

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

3

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

4

11066876

SNAP RING,M20, Ext

2шт.

5

13406811

LUBE NIPPLE,45 Degree, 1/4" NPT x .81" lg

JX80U

2шт.

5

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

JX90U, JX100U

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

5142048

PIN,19.98mm x 107.00mm

JX90U, JX100U

2шт.

8

5165265

PIN,19.99mm OD x 100mm L

JX80U

2шт.

9

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

20.5 x 28 x 16

2шт.

10

5190903

LOCKING RING

4шт.

11

5190901

BUSHING

4шт.

12

5190916

SEAL KIT

2шт.

13

13406914

LUBE NIPPLE

JX80U

2шт.

14

5190568

LOCKING RING

1шт.

Выбрано товаров: 18
