(1.40.0/105[01]) - (VAR.325) ELECTROHYD. FRONT DIFFENTIAL LOCK 40 KM/H, BRAKES AND MUDGUARDS - HALF SHAFTS

Запчасти Case IH JX80U (1.40.0/105[01]) - (VAR.325) ELECTROHYD. FRONT DIFFENTIAL LOCK 40 KM/H, BRAKES AND MUDGUARDS - HALF SHAFTS (04) - FRONT AXLE & STEERING

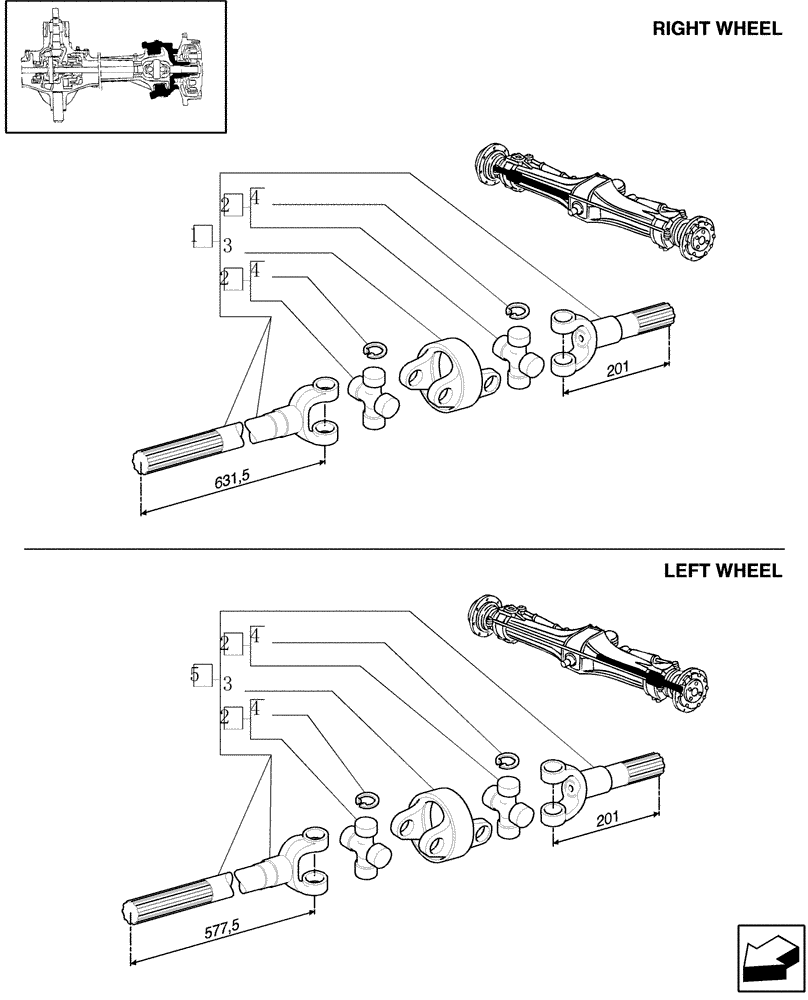

Схема запчастей Case IH JX80U - (1.40.0/105[01]) - (VAR.325) ELECTROHYD. FRONT DIFFENTIAL LOCK 40 KM/H, BRAKES AND MUDGUARDS - HALF SHAFTS (04) - FRONT AXLE & STEERING
5
2
4
2
3
2
4
4
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186665

AXLE-SHAFT, ARTICULA

1шт.

2

5191024

SPIDER

4шт.

3

5191027

YOKE

2шт.

4

11058276

SNAP RING,M24, Int

16шт.

5

5186666

AXLE-SHAFT, ARTICULA

1шт.
