Запчасти Case IH JX80U (1.33.2/19[02]) - (VAR.748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE - HYDRAULIC PTO - VALVE SUPPORT (04) - FRONT AXLE & STEERING

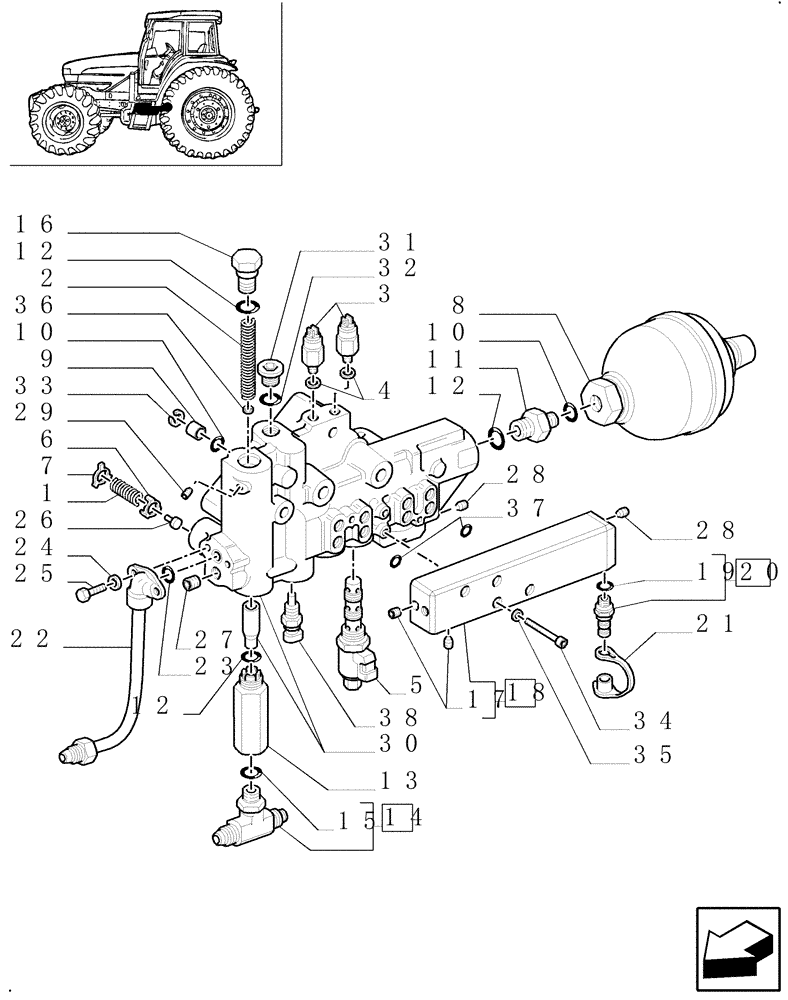

Схема запчастей Case IH JX80U - (1.33.2/19[02]) - (VAR.748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE - HYDRAULIC PTO - VALVE SUPPORT (04) - FRONT AXLE & STEERING
38
18
20
15
36
26
32
7
13
37
8
5
10
2
6
28
21
14
30
3
12
33
25
12
34
29
17
22
23
9
12
19
10
27
16
35
28
24
11
1
31
4

Артикул

Название

Примечание

Количество

1

5120761

SPRING,7.7mm OD x 20.5mm L

1шт.

2

5157119

SPRING,11.5mm x 127mm

1шт.

3

5161047

PRESSURE SWITCH

3 Bar

2шт.

4

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X17X1.5

2шт.

5

5168054

SOLENOID VALVE

Solenoid, Proportional Pressure

4шт.

6

5170395

BY-PASS VALVE

1шт.

7

5170396

DISC,6mm ID

1шт.

8

5195043

ACCUMULATOR,0.75L

1шт.

9

5178778

SPACER,11mm ID x 15mm OD x 15mm L

11X15X15

3шт.

10

14457281

O-RING,0.612" ID x 0.103" Width

4шт.

11

5186462

HYD CONNECTOR,M18 x 1.5 x 43.5mm

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

13

5182008

HYD CONNECTOR

1шт.

14

5181597

TEE

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

16

5185412

PLUG,11mm ID x 15mm OD x 15mm L

1шт.

17

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

6шт.

18

5185418

MANIFOLD

1шт.

19

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

20

5185423

COUPLING

4шт.

21

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

4шт.

22

5186957

HYD CONNECTOR

1шт.

23

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

24

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

2шт.

25

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

26

5188811

PIN,4mm OD x 8mm L

1шт.

27

10269501

PLUG,M14 x 1.5

M14X1.5

2шт.

28

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

3шт.

29

10269150

PLUG,M6 x 1 x 60mm L

M6X1

1шт.

30

5196580

SUPPORT

Includes Ref. 27, 28, 29

1шт.

31

10119414

PLUG,M18 x 1.5 x 16

1шт.

32

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

33

11057476

SNAP RING,M16, Int

1шт.

34

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

35

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

4шт.

36

13550101

WASHER

5X11

2шт.

37

14456881

O-RING,0.362" ID x 0.103" Width

8шт.

38

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

Выбрано товаров: 38
