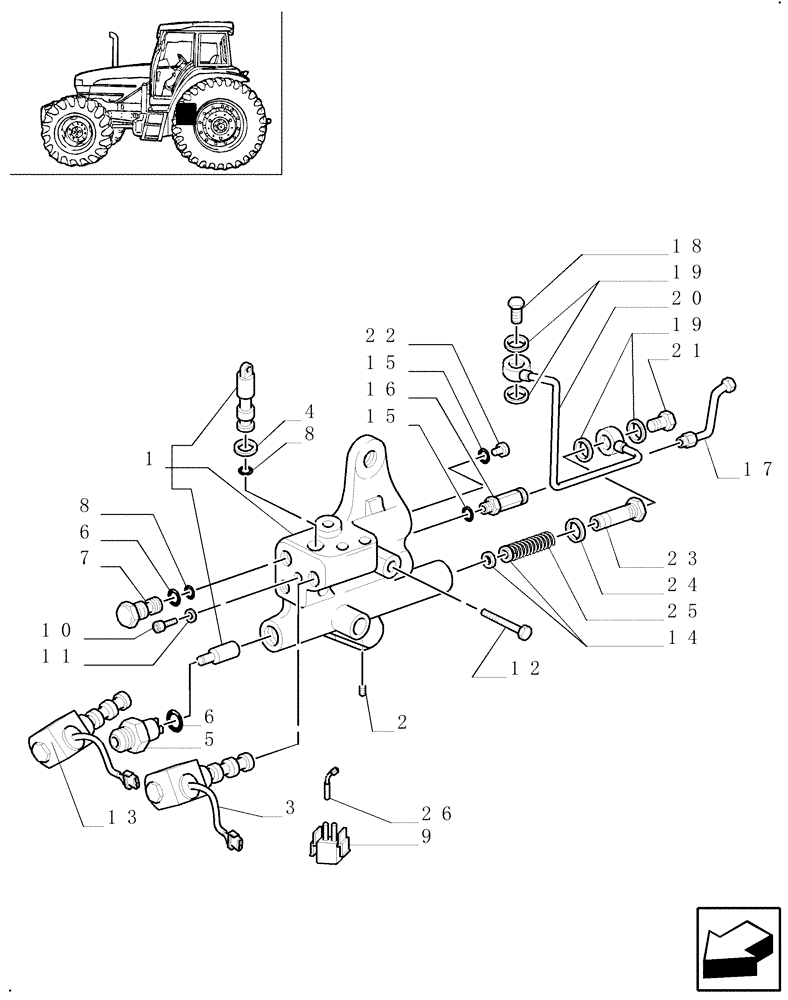

Запчасти Case IH JX80U (1.33.2/18[02]) - (VAR.729) SYNCHRO MESH GEARED POWER TAKE -OFF 540 - 750- 1000 RPM - VALVE SUPPORT (04) - FRONT AXLE & STEERING

1

5174902

SUPPORT

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

7шт.

3

5167139

SOLENOID VALVE

PTO

1шт.

4

5137965

SCRAPER RING

1шт.

5

5162914

HYD CONNECTOR

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

7

5154967

PLUG,Hex R0.2

2шт.

8

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

9

12326885

ELEC CONNECTOR,Male, 2 Pin

4WD

1шт.

10

5166386

SET SCREW,M6 x 1 x 11.5mm, Cl 8.8

1шт.

11

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

12

5166320

BOLT,Hex, M12 x 1.25 x 105mm, Cl 8.8

M12 x 1.25 x 105

1шт.

13

5164627

SOLENOID

Diff. Lock

1шт.

14

13550101

WASHER

2шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

16

5162919

EXTENSION

1шт.

17

5162915

TUBE

1шт.

18

11903817

BANJO BOLT

10 x 1.25 x 19

1шт.

19

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

10X16X1

4шт.

20

5169701

TUBE

1шт.

21

5169835

BANJO BOLT

1шт.

22

10119414

PLUG,M18 x 1.5 x 16

2шт.

23

5196410

PLUG

1шт.

24

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20X26X1,5

1шт.

25

5157119

SPRING,11.5mm x 127mm

1шт.

26

5165459

ELEC. TERMINAL PIN,Tin, 0.5 - 2.0mm

4WD

2шт.
