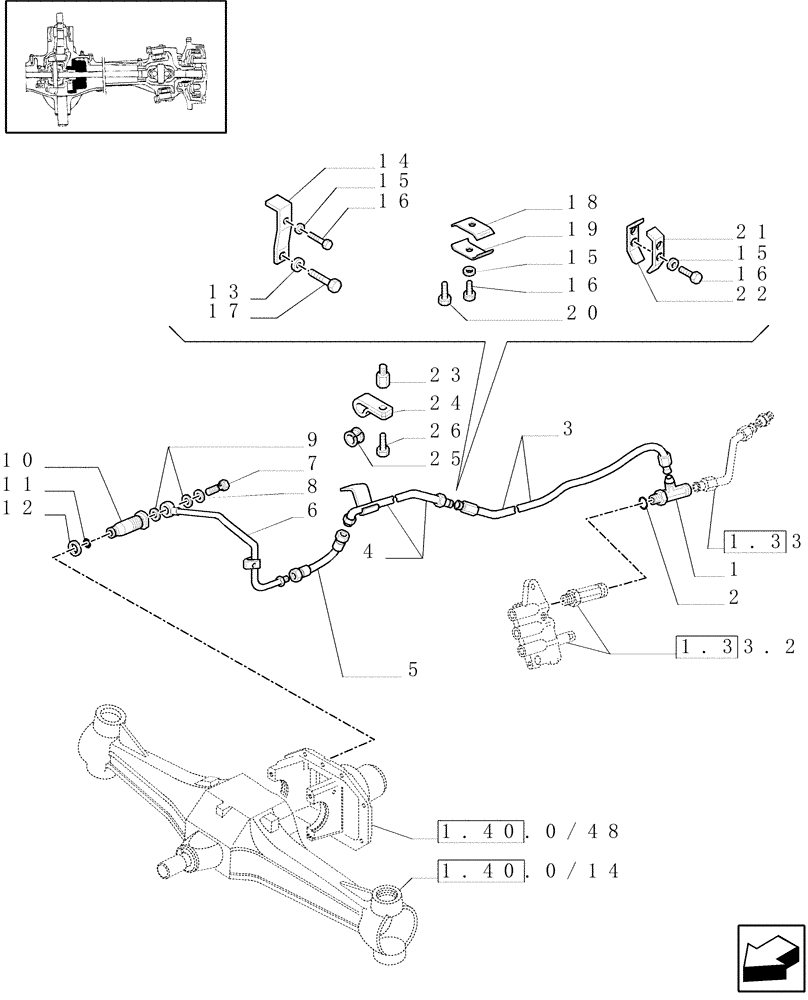

Запчасти Case IH JX80U (1.33.2/16) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR. TRANSM. - PIPES (04) - FRONT AXLE & STEERING

1

5157558

TEE,M18 x 1.5 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

3

5196722

RIGID TUBE

1шт.

4

5174093

RIGID TUBE

1шт.

5

5170741

FLEXIBLE HOSE,8mm ID x 325mm L, SAE 100R2

1шт.

6

5163427

HYD TUBE

1шт.

7

10185114

BANJO BOLT,M14 x 1.5 x 27mm

1шт.

8

10520021

WASHER,12.2mm ID x 22mm OD x 3mm Thk

1шт.

9

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

2шт.

10

5163430

HYD CONNECTOR

1шт.

11

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

1шт.

12

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

1шт.

13

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

14

5174101

BRACKET

1шт.

15

10516474

LOCK WASHER

M6

4шт.

16

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

3шт.

17

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

18

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

M6

1шт.

19

5193550

CLAMP,6.5mm ID

1шт.

20

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

21

5174104

BRACKET

1шт.

22

5174105

BRACKET

M6

1шт.

23

5198397

SPACER

1шт.

24

4951136

CLAMP

1шт.

25

5118182

RING

1шт.

26

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.
