(1.33.2/04) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRON. REVERSING GEAR - 30-40 KM/H - CONTROL VALVE

Запчасти Case IH JX80U (1.33.2/04) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRON. REVERSING GEAR - 30-40 KM/H - CONTROL VALVE (04) - FRONT AXLE & STEERING

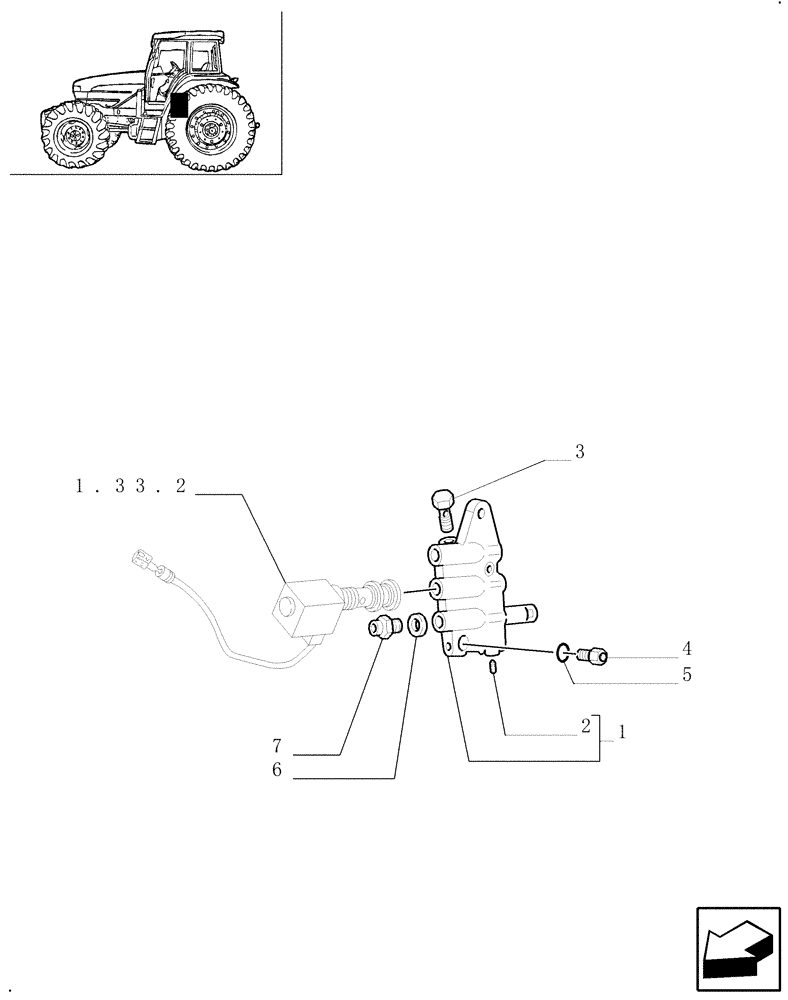

Схема запчастей Case IH JX80U - (1.33.2/04) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRON. REVERSING GEAR - 30-40 KM/H - CONTROL VALVE (04) - FRONT AXLE & STEERING
2
7
4
5
6
1
1.33.2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5174708

SUPPORT

1шт.

2

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

2шт.

3

11903114

PLUG,M10 x 1.25 x 11

1шт.

4

5174927

PLUG

1шт.

5

14438185

O-RING,24mm ID x 3mm

1шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

7

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

1шт.
