Запчасти Case IH JX80U (1.33.2/01[02]) - IDLER CONTROLS - 4WD - VALVE SUPPORT & PIPES (04) - FRONT AXLE & STEERING

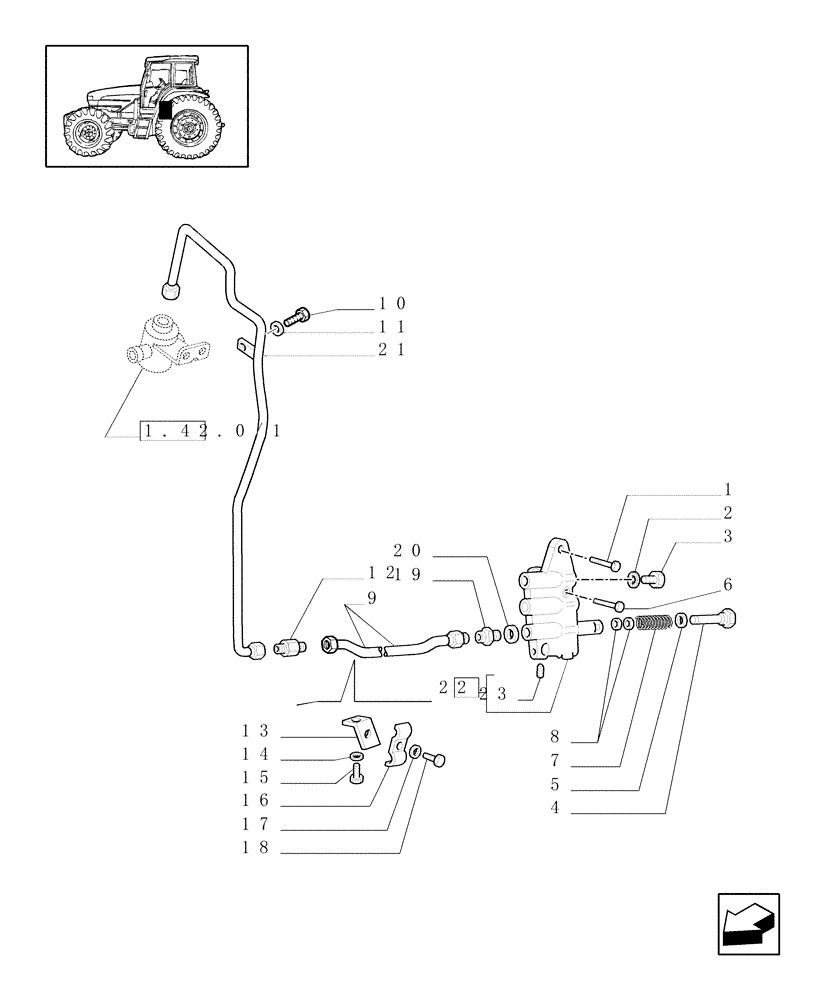

Схема запчастей Case IH JX80U - (1.33.2/01[02]) - IDLER CONTROLS - 4WD - VALVE SUPPORT & PIPES (04) - FRONT AXLE & STEERING
1.42.0/1
16
14
17
8
19
9
20
23
18
2
15
22
7
4
11
5
6
12
1
13
3
21
10

Артикул

Название

Примечание

Количество

1

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

3

10119414

PLUG,M18 x 1.5 x 16

1шт.

4

5169698

PLUG

1шт.

5

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

Sealing, M20 IDX1.5 Thk

1шт.

6

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

7

5157119

SPRING,11.5mm x 127mm

1шт.

8

13550101

WASHER

5X11

2шт.

9

5173976

HYD TUBE

1шт.

10

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

12

5173931

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 JIC

3/4"-16, 7/8"-14

1шт.

13

5174100

BRACKET

1шт.

14

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

15

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

16

5174099

RETAINER COLLAR

1шт.

17

10516474

LOCK WASHER

M6

1шт.

18

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

19

5162914

HYD CONNECTOR

1шт.

20

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

21

5174095

HYD TUBE

1шт.

22

5174901

VALVE

JX70U, JX80U, JX90U

1шт.

23

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

3шт.

23

10269501

PLUG,M14 x 1.5

14X1,5

2шт.

Выбрано товаров: 24
