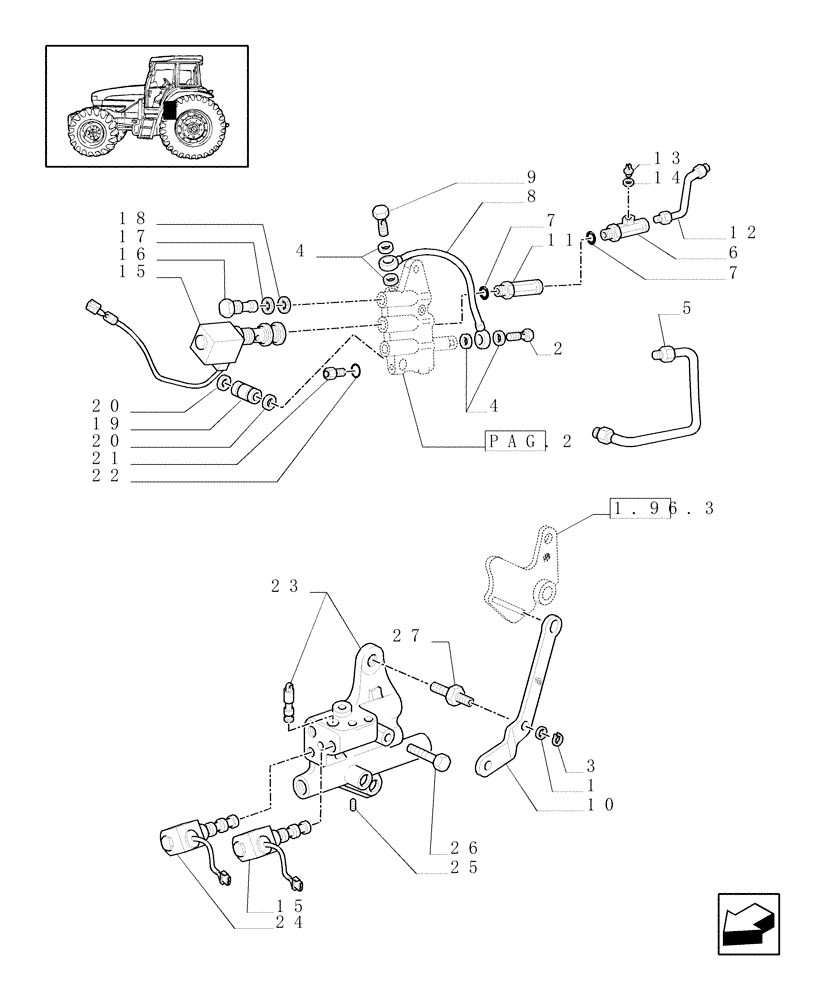

Запчасти Case IH JX80U (1.33.2/01[01]) - IDLER CONTROLS - 4WD - PIPES & SOLENOID VALVES (04) - FRONT AXLE & STEERING

1

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

M10X18, JX100U

1шт.

2

5169835

BANJO BOLT

2шт.

3

11065976

CIRCLIP,M10, Ext

JX100U

1шт.

4

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

M8X12X1.5

4шт.

5

5169208

RIGID TUBE

1шт.

6

5169207

HYD CONNECTOR

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

8

5169701

TUBE

1шт.

9

11903817

BANJO BOLT

10 x 1.25 x 19

1шт.

10

5166276

LEVER

JX100U

1шт.

11

5162919

EXTENSION

1шт.

12

5162915

TUBE

1шт.

13

5163540

PRESSURE SWITCH

1шт.

14

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

M12X1.5X17

1шт.

15

5164628

SOLENOID

4WD

1шт.

16

5154967

PLUG,Hex R0.2

7/8"-14 UNF, JX70U, JX80U, JX90U

1шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

JX70U, JX80U, JX90U

1шт.

18

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

JX70U, JX80U, JX90U

1шт.

19

5174926

PIPE COUPLING

1шт.

20

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

21

5174927

PLUG

M27X2

1шт.

22

14438185

O-RING,24mm ID x 3mm

1шт.

23

5174902

SUPPORT

JX100U

1шт.

24

5164627

SOLENOID

Diff. Lock, JX100U

1шт.

25

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25, JX100U

7шт.

26

5166320

BOLT,Hex, M12 x 1.25 x 105mm, Cl 8.8

M12 x 1.25 x 105, JX100U

1шт.

27

5166275

SCREW

JX100U

1шт.
