Запчасти Case IH JX80U (1.33.0) - IDLER CASE & COVERS - 4WD (04) - FRONT AXLE & STEERING

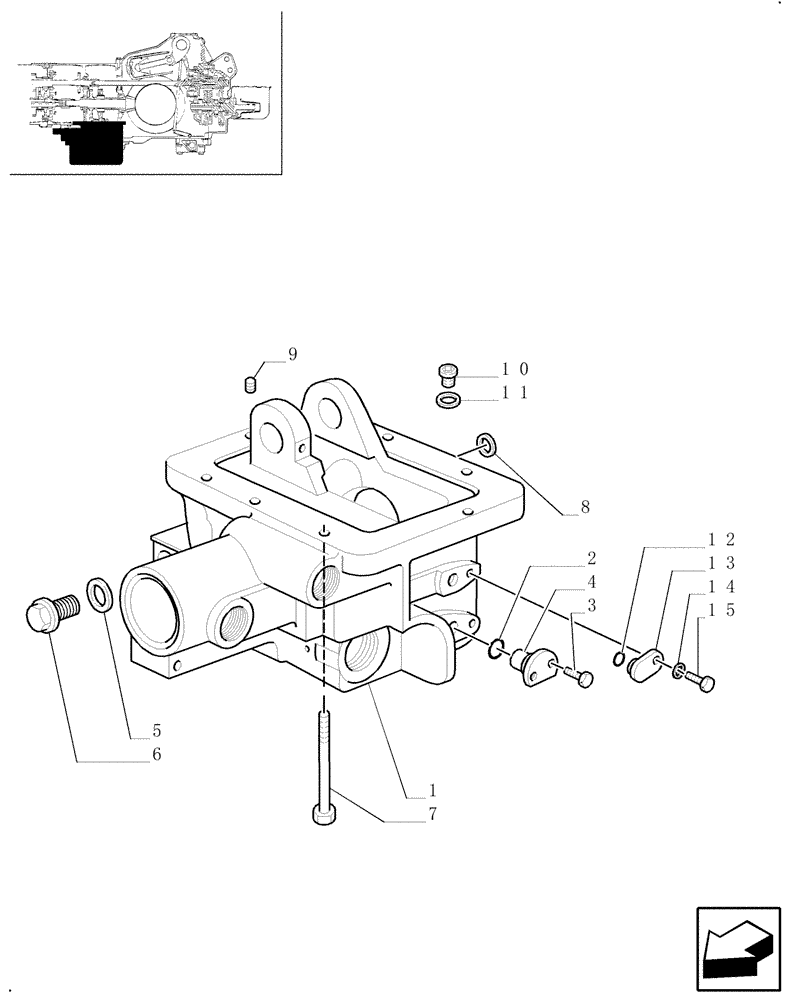

Схема запчастей Case IH JX80U - (1.33.0) - IDLER CASE & COVERS - 4WD (04) - FRONT AXLE & STEERING
8
10
15
3
11
7
12
4
13
2
1
14
9
5
6

Артикул

Название

Примечание

Количество

1

5196111

HOUSING

1шт.

2

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

3

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

2шт.

4

5171837

PLUG,17.3mm ID x 42mm OD x 7.5mm Thk

1шт.

5

10262160

SEAL,M28.4 x 34 x 2, Copper

1шт.

6

10305414

PLUG

M28X1.5

1шт.

7

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

7

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

7

15541721

SCREW,Hex, M12 x 1.25 x 110mm, Cl 8.8

1шт.

8

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X17X1.5

3шт.

9

10839810

DOWEL,12mm OD x 18mm L

M12 x 18

2шт.

10

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

11

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

12

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

13

5164036

PLUG

1шт.

14

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

1шт.

15

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

Выбрано товаров: 17
