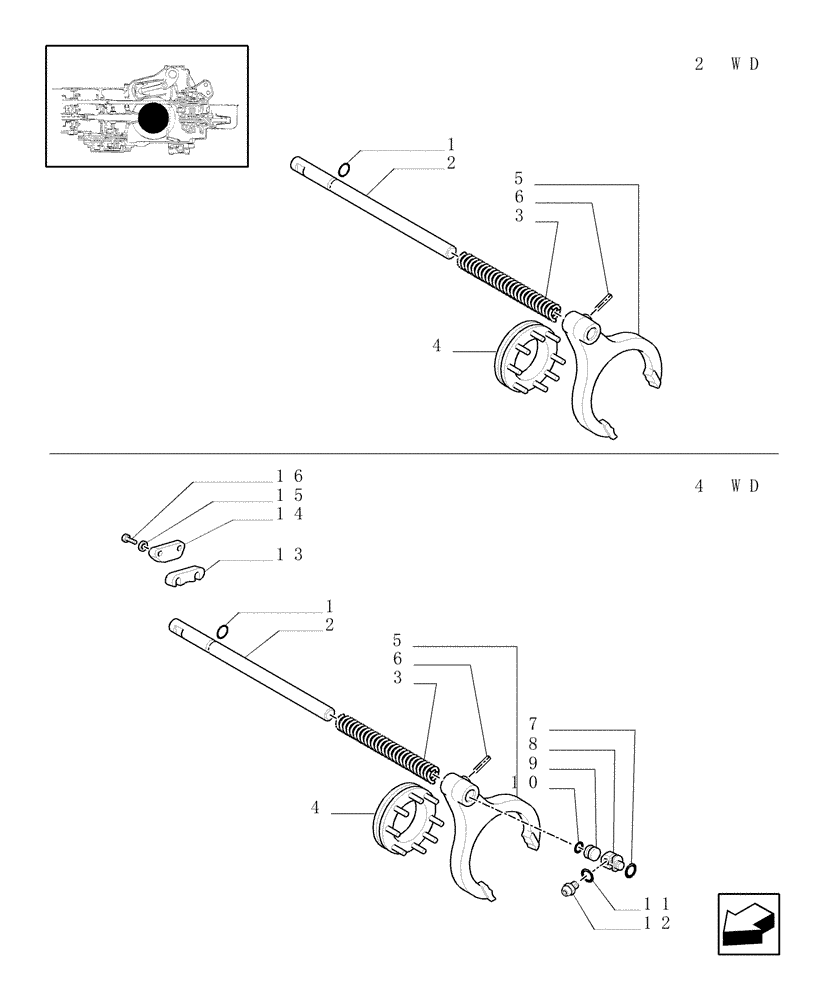

Запчасти Case IH JX80U (1.32.6[01]) - DIFFERENTIAL LOCK - RODS & FORKS (03) - TRANSMISSION

1

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

2

5160830

SHAFT

4WD

1шт.

2

5162895

SHAFT

2WD

1шт.

3

5114581

SPRING,27mm OD x 220mm

2WD

1шт.

3

5162818

SPRING,27.5mm OD x 237mm L

4WD

1шт.

4

5117245

DRIVE BUSHING

JX80U, JX90U

1шт.

4

5121654

SLEEVE

JX70U

1шт.

5

5113659

SHIFTER FORK

JX80U, JX90U

1шт.

5

5114583

YOKE

JX70U

1шт.

6

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

1шт.

7

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

4WD

1шт.

8

5162820

ELBOW,M18 x 1.5 x 61mm L

4WD

1шт.

9

5162819

PISTON

4WD

1шт.

10

5160827

SEAL,22.55mm ID x 30.1mm OD x 3.2mm Thk

4WD

1шт.

11

14437985

O-RING,15.3mm ID x 2.4mm

4WD

1шт.

12

5158800

HYD CONNECTOR,M18 x 1.5 x 37.5mm L

4WD

1шт.

13

5114582

SHIM,25mm OD x 0.5mm Thk

4WD

1шт.

14

5156350

PLATE

4WD

1шт.

15

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4WD

2шт.

16

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4WD

2шт.
