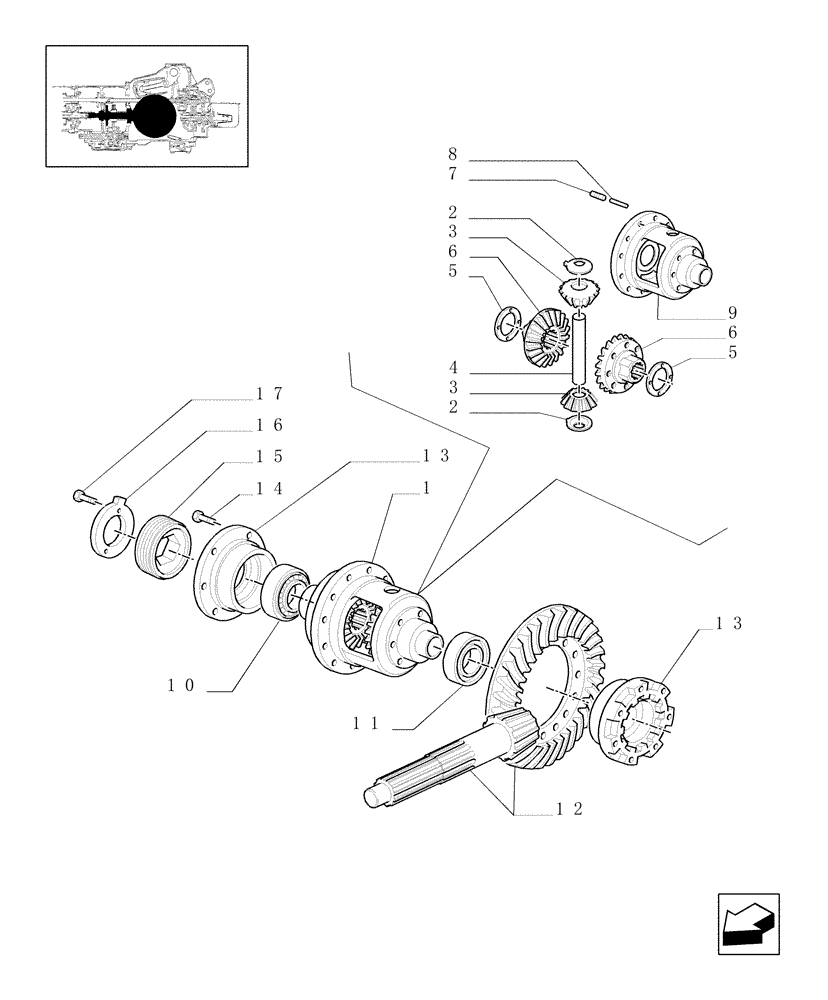

Запчасти Case IH JX80U (1.32.4/03) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR. TRANSM. - BEVEL GEAR PAIR (03) - TRANSMISSION

1

5181267

DIFFERENTIAL ASSY

1шт.

2

4993654

THRUST WASHER,30mm ID x 61mm OD x 1.5mm Thk

2шт.

3

4993578

IDLER PINION

2шт.

4

47135873

PIN,29.96mm OD x 182mm L

1шт.

5

4993652

THRUST WASHER,1.5mm Thk

2шт.

5

4993653

THRUST WASHER,60mm ID x 80mm OD x 1.6mm Thk

2шт.

5

5138269

THRUST WASHER,60mm ID x 80mm OD x 1.7mm Thk

2шт.

5

5144799

THRUST WASHER,60mm ID x 80mm OD x 1.4mm Thk

2шт.

5

5144800

THRUST WASHER,60mm ID x 80mm OD x 1.8mm Thk

2шт.

5

5168814

THRUST WASHER,60mm ID x 80mm OD x 1.9mm Thk

2шт.

5

5168815

THRUST WASHER,60mm ID x 80mm OD x 2mm Thk

2шт.

6

4993576

PLANETARY GEAR

LH

1шт.

6

4993577

PLANETARY GEAR

RH

1шт.

7

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

61.5X6.5

1шт.

9

5181266

HOUSING

1шт.

10

24903480

ROLLER BEARING,75mm ID x 115mm OD x 25mm W

1шт.

11

24903460

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

1шт.

12

47135643

GEAR SET

Ratio = 9/43

1шт.

13

5181269

SUPPORT

LH

1шт.

13

5181270

SUPPORT

RH

1шт.

14

14234021

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8

M10X1.25X50

6шт.

15

5181271

LOCK NUT

1шт.

16

5181272

LOCK NUT

1шт.

17

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
