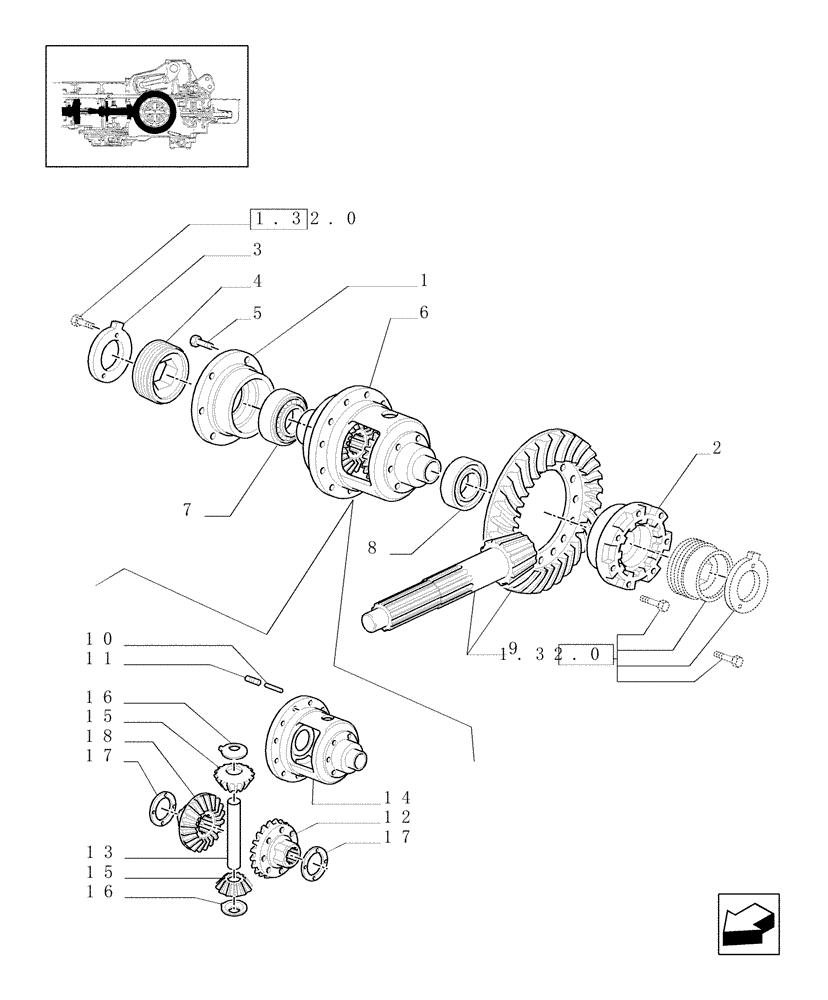

Запчасти Case IH JX80U (1.32.4/01) - (VAR.308-308/1) FRONT AXLE CL.2 HYDR. LOCKING 30-40 KM/.- BEVEL GEAR PAIR (03) - TRANSMISSION

1

5181270

SUPPORT

RH

1шт.

2

5181269

SUPPORT

LH

1шт.

3

5181272

LOCK NUT

RH

1шт.

4

5181271

LOCK NUT

RH

1шт.

5

14234021

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8

M10X50

6шт.

6

5181267

DIFFERENTIAL ASSY

1шт.

7

24903480

ROLLER BEARING,75mm ID x 115mm OD x 25mm W

Roller/Taper, 75X115X25

1шт.

8

24903460

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

Roller/Taper, 65X100X23

1шт.

9

47135643

GEAR SET

9/43, VAR. 308

1шт.

10

5173242

ROLL PIN,6.5mm OD x 61mm L

61.5X6.5

1шт.

11

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

12

4993576

PLANETARY GEAR

LH

1шт.

13

47135873

PIN,29.96mm OD x 182mm L

1шт.

14

5181266

HOUSING

1шт.

15

4993578

IDLER PINION

2шт.

16

4993654

THRUST WASHER,30mm ID x 61mm OD x 1.5mm Thk

2шт.

17

4993652

THRUST WASHER,1.5mm Thk

2шт.

17

4993653

THRUST WASHER,60mm ID x 80mm OD x 1.6mm Thk

2шт.

17

5138269

THRUST WASHER,60mm ID x 80mm OD x 1.7mm Thk

2шт.

17

5144799

THRUST WASHER,60mm ID x 80mm OD x 1.4mm Thk

2шт.

17

5144800

THRUST WASHER,60mm ID x 80mm OD x 1.8mm Thk

2шт.

17

5168814

THRUST WASHER,60mm ID x 80mm OD x 1.9mm Thk

2шт.

17

5168815

THRUST WASHER,60mm ID x 80mm OD x 2mm Thk

2шт.

18

4993577

PLANETARY GEAR

RH

1шт.

19

13910670

ROLL PIN,M6 x 40mm OAL, Coiled

1шт.

20

5181268

SHIFTER FORK

1шт.

21

5181720

COLLAR

1шт.
