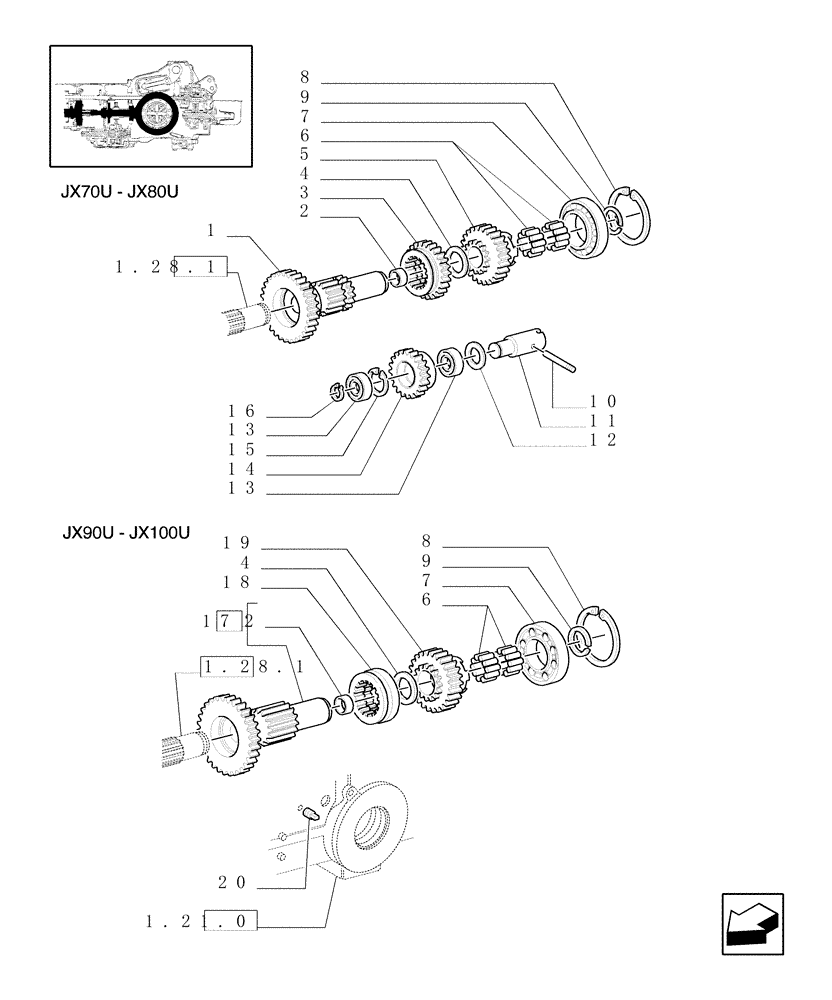

Запчасти Case IH JX80U (1.32.1[02]) - CENTRAL REDUCTION GEARS - MEDIUM SPEED ENGAGING GEAR (03) - TRANSMISSION

1

5176776

SHAFT

JX70U, JX80U

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25X28.53X18

1шт.

3

5145164

GEAR

JX70U, JX80U

1шт.

4

5109683

THRUST WASHER,42.05mm ID x 56mm OD x 4mm Thk

1шт.

4

5182075

WASHER,42.13mm ID x 56mm OD x 4mm Thk

JX90U

1шт.

5

5125013

GEAR

JX70U, JX80U

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

42X47X27

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

1шт.

8

11075476

SNAP RING,M110, Int

1шт.

9

5117076

CIRCLIP,M47, Ext

D = 47

1шт.

10

5152965

CLUTCH CENTRALIZER,M10 x 1.25, 80.5mm L

JX70U, JX80U

1шт.

11

5153087

PIN,32mm OD x 106.5mm L

JX70U, JX80U

1шт.

12

5153088

THRUST WASHER,25.1mm ID x 33mm OD x 1.5mm Thk

JX70U, JX80U

1шт.

13

20715580

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

25X52X15, JX70U, JX80U

2шт.

14

5145166

GEAR

JX70U, JX80U

1шт.

15

11060576

SNAP RING,M52, Int

JX70U, JX80U

1шт.

16

5117075

SNAP RING

JX70U, JX80U

1шт.

17

5176751

MAIN SHAFT

JX100U

1шт.

17

5176778

SHAFT

JX90U

1шт.

18

5125880

SPLINED COUPLING,17T

JX90U, JX100U

1шт.

19

5131169

GEAR

JX90U, JX100U

1шт.

20

14323911

PLUG

M10 x 1.25, JX90U, JX100U

1шт.
