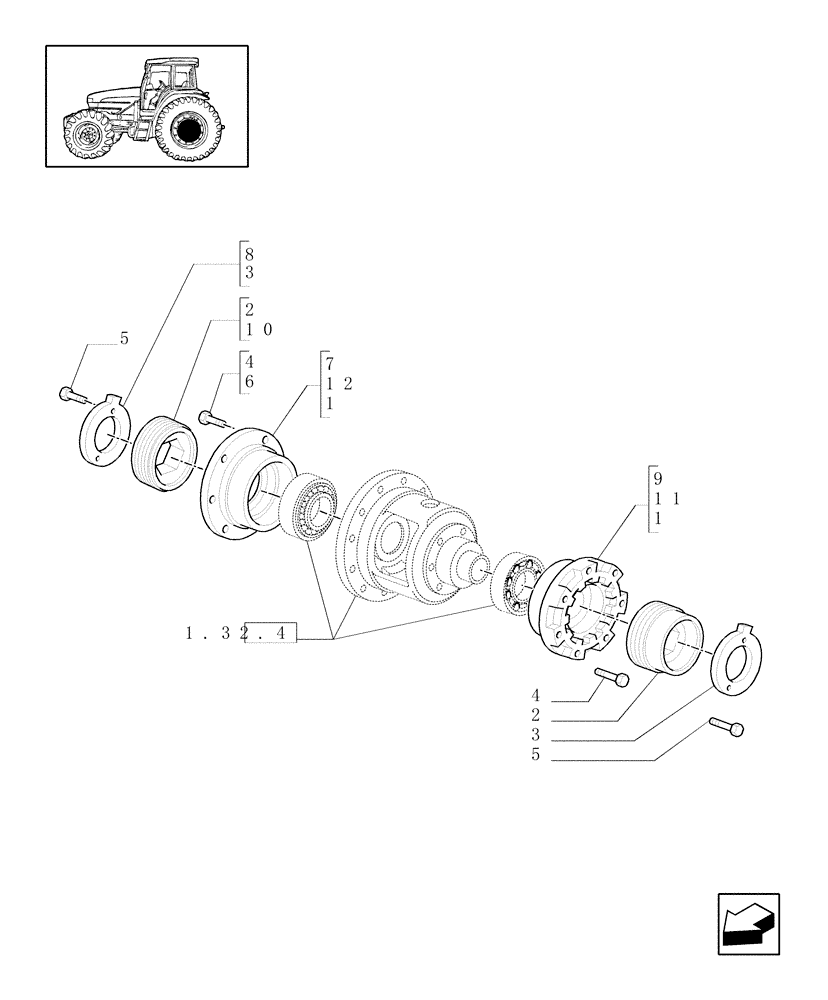

Запчасти Case IH JX80U (1.32.0) - CASINGS, COVERS AND SUPPORTS (03) - TRANSMISSION

1

5181163

SUPPORT

JX80U, JX90U

2шт.

2

5198104

BEARING LOCK NUT,Hex, M8 x 1.25, Cl 8.8

JX80U, JX90U

2шт.

Quantity 1 for JX100U

1шт.

2

5198103

LOCK NUT

JX70U

2шт.

3

5127164

LOCKING RING

JX70U, JX80U, JX90U

2шт.

Quantity 1 for JX100U

1шт.

4

14233721

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

JX70U

12шт.

Quantity 6 for JX100U

1шт.

4

14233931

LOCK BOLT,Self Lkg, M10 x 1.25 x 45mm

Cap, Self Locking, M10X1.25X45, JX80U, JX90U

12шт.

5

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

14234021

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8

M1X1.25X50, JX100U

6шт.

7

5181270

SUPPORT

RH, JX100U

1шт.

8

5198101

NUT

JX100U

1шт.

9

5181269

SUPPORT

LH, JX100U

1шт.

10

5198105

LOCK NUT

JX100U

1шт.

11

5181167

SUPPORT

LH, JX70U

1шт.

12

5181166

SUPPORT

RH, JX70U

1шт.
