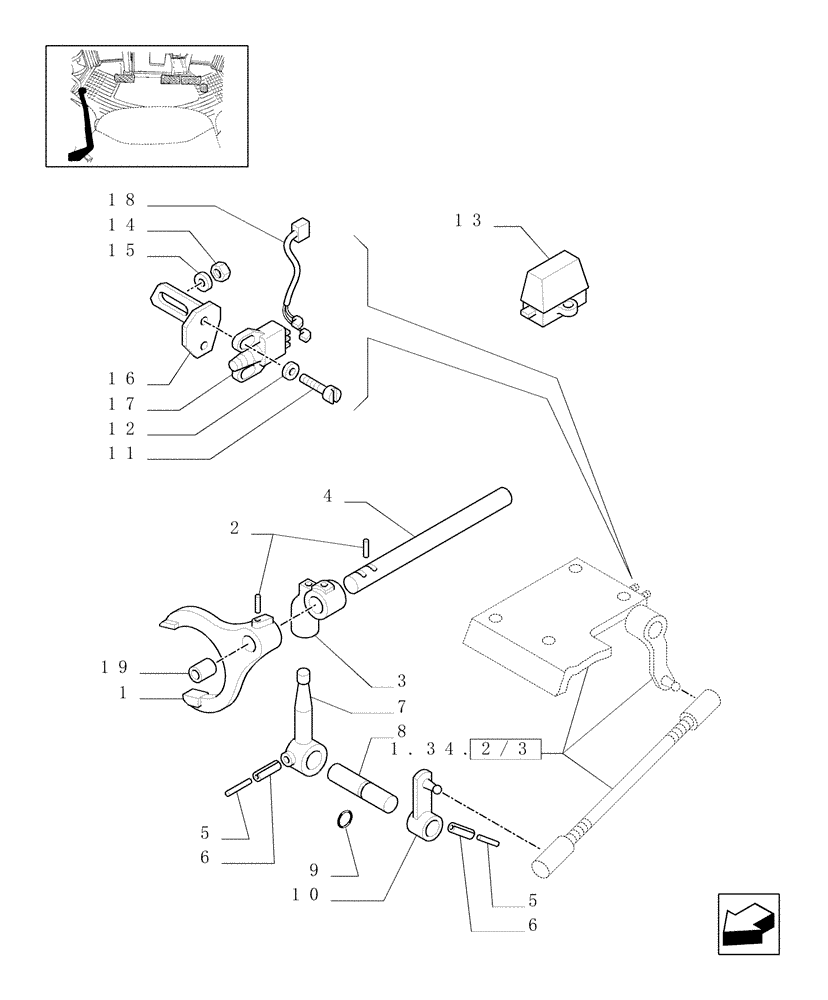

Запчасти Case IH JX80U (1.29.0/03) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - ROD AND FORK (03) - TRANSMISSION

1

5143463

SHIFTER FORK

1шт.

2

13907670

ROLL PIN,M5 x 30, Coiled

2шт.

3

5162090

HUB

1шт.

4

5174048

ROD,16mm OD x 319mm L

1шт.

5

14601670

LOCK PIN,M5 x 40, Slotted

2шт.

6

14607270

LOCK PIN,M8 x 40, Slotted

2шт.

7

5131965

LEVER

1шт.

8

5137578

SHAFT

1шт.

9

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

10

5171310

LEVER

1шт.

11

13272214

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

2шт.

12

11181479

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

13

5126128

DIFF LOCK SWITCH

1шт.

14

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

15

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

16

5174568

SUPPORT

1шт.

17

83961542

SWITCH

Hi/Lo, Forward/Reverse

1шт.

18

5169419

ELECTRIC CABLE

1шт.
