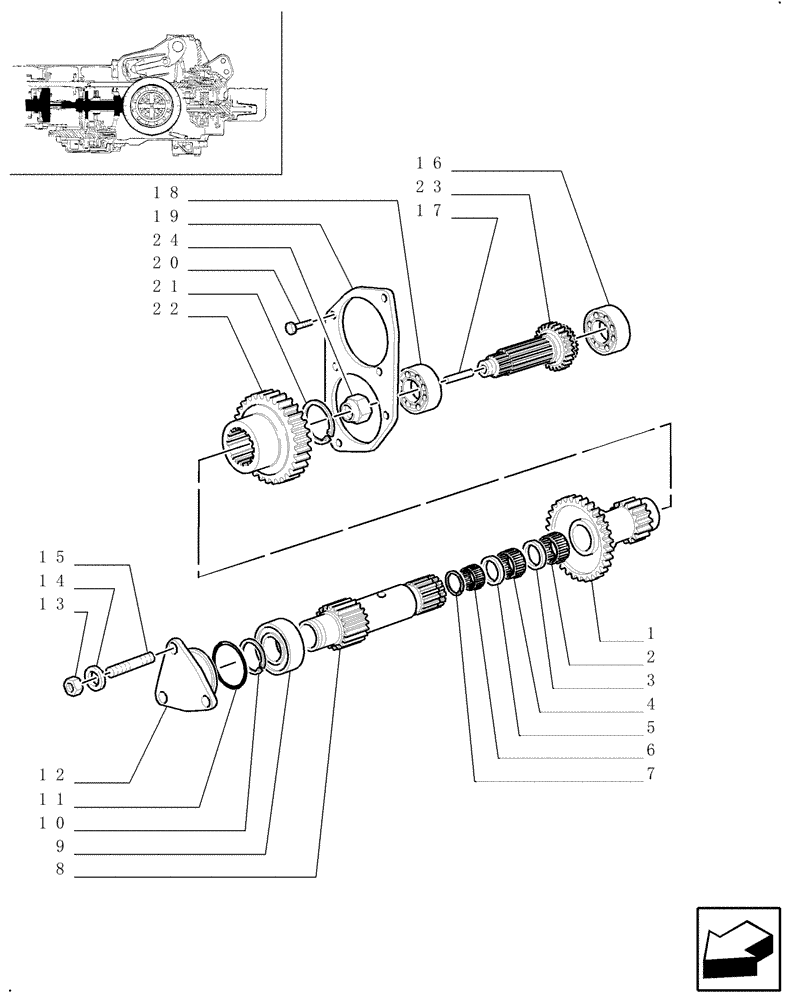

Запчасти Case IH JX80U (1.28.1/02[01]) - (VAR.113-119-119/1) SYNCHRONIZED CREEPER AND REVERSER UNIT - SHAFTS AND GEARS (03) - TRANSMISSION

1

5160669

DRIVEN GEAR

VAR. 113-119

1шт.

2

5131694

NEEDLE BEARING CAGE,55mm ID x 62mm OD x 18mm W

55X62X18, VAR. 113-119

1шт.

3

5131691

WASHER,55.1mm ID x 75mm OD x 7mm Thk

55.1X75X7, VAR. 113-119

1шт.

4

5117559

NEEDLE BEARING CAGE,32mm ID x 38mm OD x 26mm W

32X38X26, VAR. 113-119

2шт.

5

5141500

RING,28.2mm ID x 34.5mm OD x 1mm Thk

28.2X34.5X1, VAR. 113-119

1шт.

6

5107311

NEEDLE BEARING,28mm ID x 35mm OD x 27mm W

28X35X27

1шт.

7

5116573

CIRCLIP,34.1mm ID x 36.4mm OD

D = 35mm

1шт.

8

5160667

DRIVEN GEAR

VAR. 113-119

1шт.

9

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

40X80X18

1шт.

10

11068876

SNAP RING,M40, Ext

1шт.

11

14461081

O-RING,3.237" ID x 0.103" Width

1шт.

12

5161822

COVER

1шт.

13

16100821

NUT,M8, Cl 10

3шт.

14

17798274

WASHER

M8

3шт.

15

13517120

STUD

M8 x 1.25X40

3шт.

16

5126458

BEARING, ROLLER, CYL,27.5mm ID x 52mm OD x 21mm W

1шт.

17

5145131

RIGID TUBE

1шт.

18

28995880

BALL BEARING,35mm ID x 80mm OD x 21mm W

25X80X21

1шт.

19

5137550

COVER

1шт.

20

14238030

SCREW,M8 x 1.25 x 30mm

M8X30

6шт.

21

11069576

SNAP RING,M55, Ext

1шт.

22

5160666

DRIVEN GEAR

VAR. 113-119

1шт.

23

5125045

SHAFT

JX70U, JX80U

1шт.

23

5160028

SHAFT

JX90U, JX100U

1шт.

24

5137678

RING NUT

M34X14.5

1шт.
