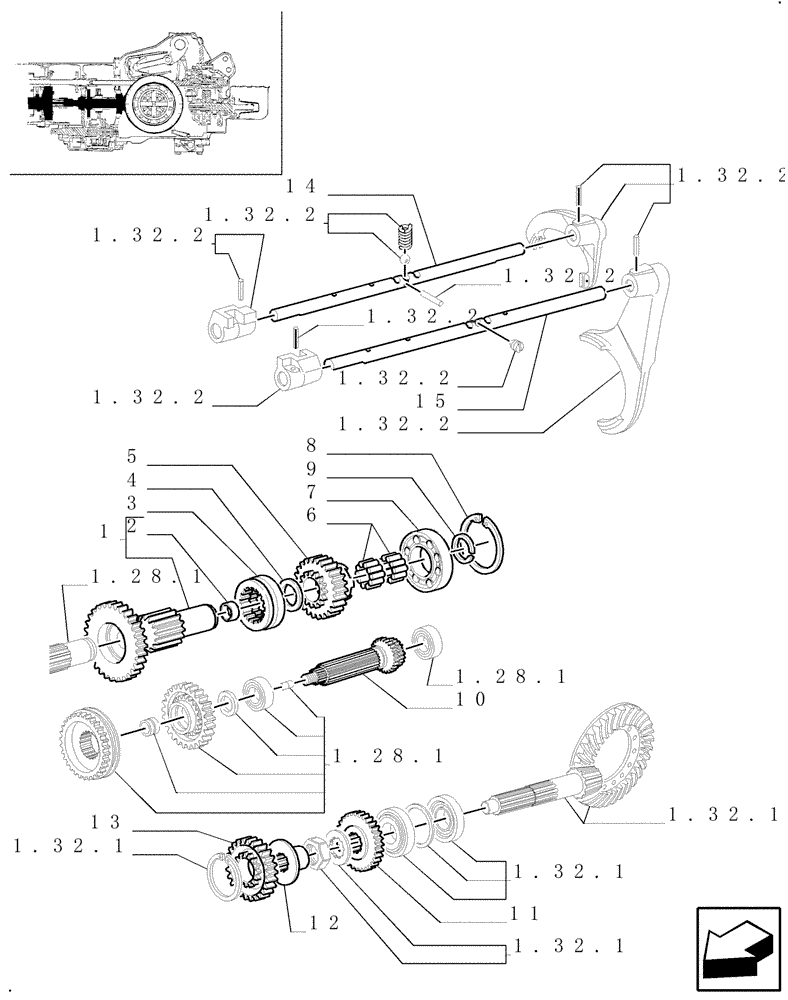

Запчасти Case IH JX80U (1.28.1/01[03]) - (VAR.109-110) SYNCHRONIZED MECHANICAL REVERSER UNIT - 4WD - SHAFTS AND GEARS (03) - TRANSMISSION

1

5176778

SHAFT

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25X28X18

1шт.

3

5125880

SPLINED COUPLING,17T

1шт.

4

5182075

WASHER,42.13mm ID x 56mm OD x 4mm Thk

1шт.

5

5131169

GEAR

1шт.

6

5109747

NEEDLE BEARING,42mm ID x 47mm OD x 27mm W

2шт.

7

20141040

BALL BEARING,60mm ID x 110mm OD x 22mm W

60 x 110 x 22 mm

1шт.

8

11075476

SNAP RING,M110, Int

1шт.

9

5117076

CIRCLIP,M47, Ext

D = 47

1шт.

10

5131167

DRIVEN SHAFT

1шт.

11

5131674

DRIVEN GEAR

1шт.

12

5131681

SPACER

1шт.

13

5131680

DRIVEN GEAR

1шт.

14

5131682

SHIFT RAIL

1шт.

15

5131683

SHIFT RAIL

1шт.
