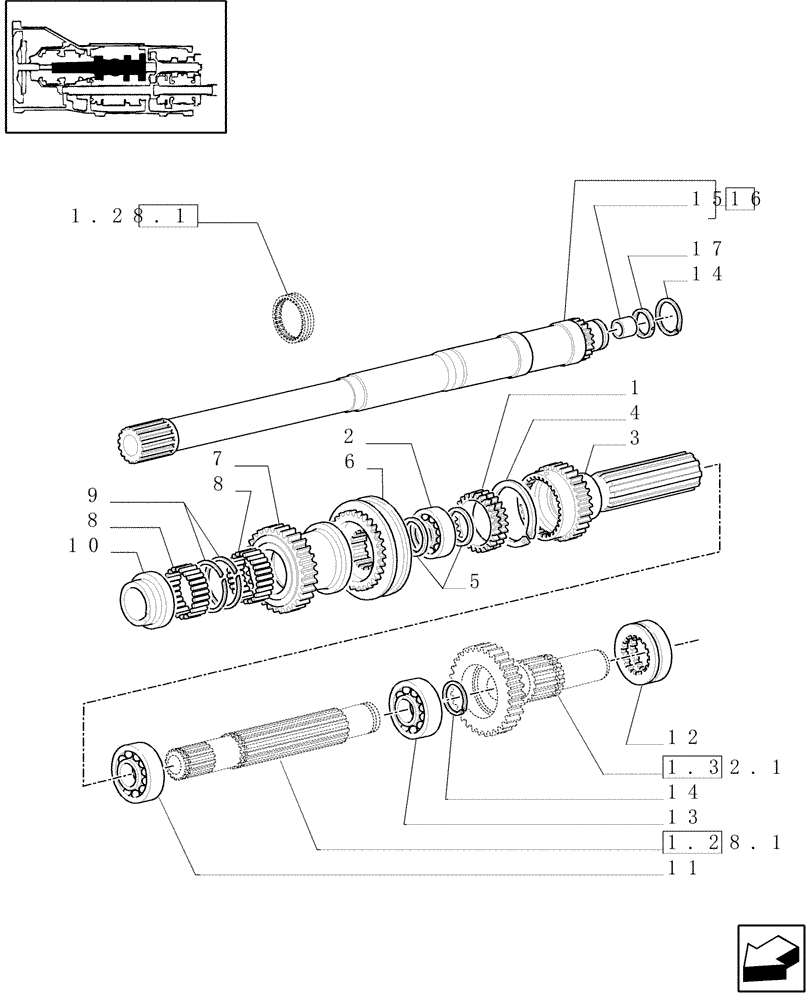

Запчасти Case IH JX80U (1.28.1/01[01]) - (VAR.109-110) SYNCHRONIZED MECHANICAL REVERSER UNIT - SHAFTS AND GEARS (03) - TRANSMISSION

1

5143460

SLEEVE

1шт.

2

24905120

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

40X68X15

1шт.

3

5161817

MAIN SHAFT

1шт.

4

11070876

CIRCLIP,M80, Ext

1шт.

5

5143461

WASHER,40.1mm ID x 56mm OD x 3mm Thk

2шт.

6

5186629

SYNCHRONIZER

Forward/Reverse

1шт.

7

5164583

DRIVEN GEAR

Reverse Drive Gear 26 Teeth

1шт.

8

5137225

NEEDLE BEARING CAGE,52mm ID x 57mm OD x 17mm W

Roller/Taper, 52X57X17

2шт.

9

5137224

WASHER,54.7mm ID x 59.3mm OD x 1.5mm Thk

2шт.

10

5137222

SPACER,45.1mm ID x 70mm OD x 20.5mm L

1шт.

11

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

Roller/Taper, 45X85X19

1шт.

12

5125880

SPLINED COUPLING,17T

1шт.

13

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

Roller/Taper, 40X80X18

1шт.

14

11068876

SNAP RING,M40, Ext

2шт.

15

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

1шт.

16

5164529

SHAFT

708mm L, VAR.109

1шт.

16

5167151

SHAFT

648mm L, VAR. 110

1шт.

17

4985295

SEAL

25X31X7

1шт.
