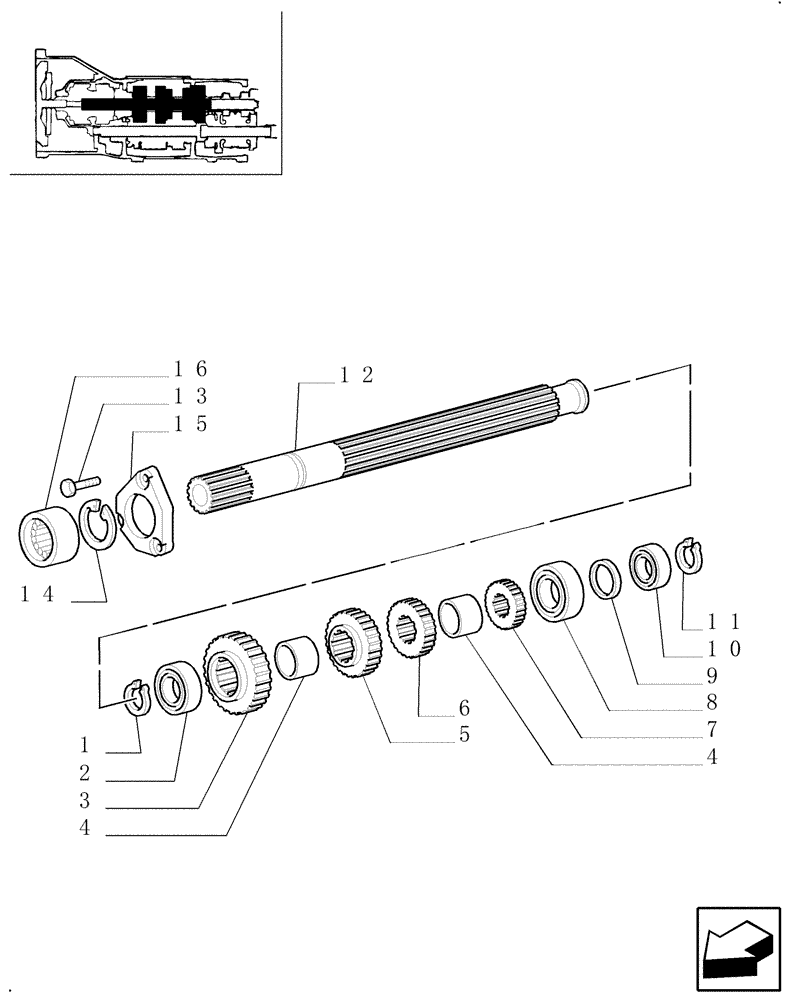

Запчасти Case IH JX80U (1.28.1[01]) - TRANSMISSION GEARS - GEARBOX SHAFT, GEARINGS (03) - TRANSMISSION

1

11069076

SNAP RING,M45, Ext

1шт.

2

28996330

BALL BEARING,45mm ID x 85mm OD x 19mm W

45 x 85X19

1шт.

3

5123982

DRIVING GEAR

1шт.

4

5111983

SPACER,44.55mm ID x 55mm OD x 35mm L

44.5X55X35

2шт.

5

5179672

DRIVING GEAR

III Speed

1шт.

6

5169606

DRIVING GEAR

II Speed

1шт.

7

5118912

DRIVING GEAR

I Speed

1шт.

8

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

40X90X23

1шт.

9

5109669

WASHER,40.05mm ID x 55mm OD x 3mm Thk

1шт.

9

5118937

WASHER,40.05mm ID x 55mm OD x 3.25mm Thk

1шт.

9

5118938

WASHER,40.05mm ID x 55mm OD x 3.5mm Thk

1шт.

9

5118939

WASHER,40.05mm ID x 55mm OD x 3.75mm Thk

1шт.

9

5118940

THRUST WASHER,40.05mm ID x 55mm OD x 4mm Thk

1шт.

10

5147070

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

40X80X18

1шт.

11

11068876

SNAP RING,M40, Ext

1шт.

12

5125349

MAIN SHAFT

1шт.

13

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

14

11059974

SNAP RING,M40, Int

1шт.

15

5162671

COVER

1шт.

16

5123466

SLEEVE,16T

1шт.
