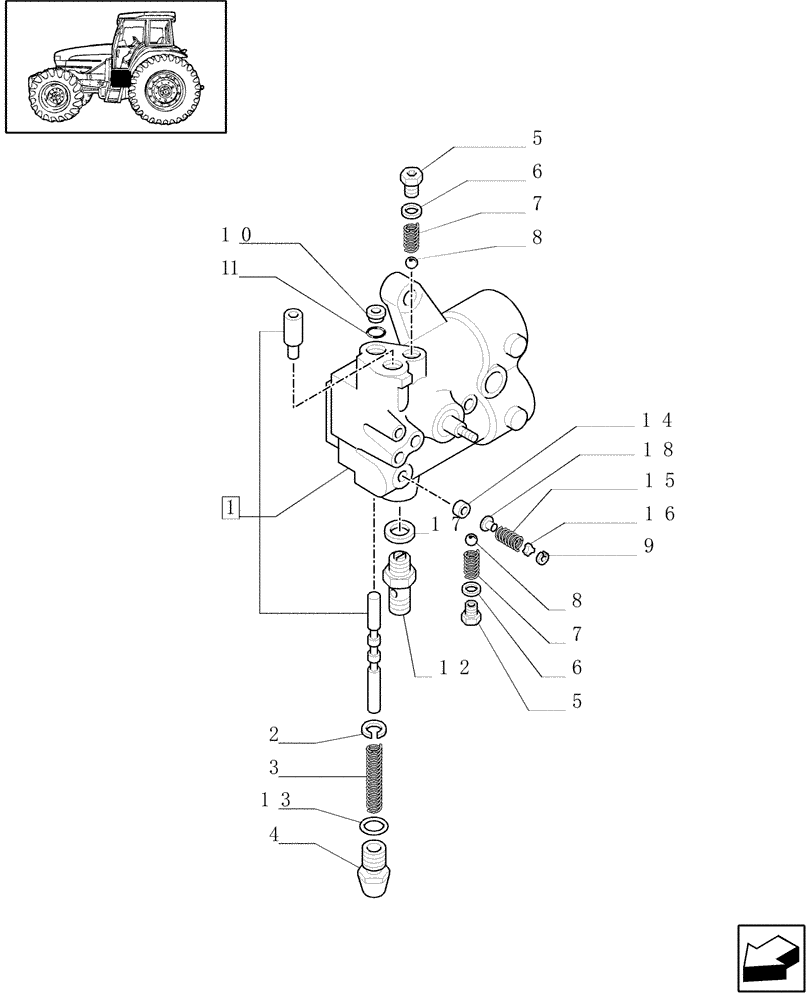

Запчасти Case IH JX80U (1.27.4[03]) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - CONTROL VALVE (03) - TRANSMISSION

1

5166741

CONTROL VALVE

1шт.

2

5137964

CIRCLIP

1шт.

3

5131958

SPRING

1шт.

4

5137966

PLUG

1шт.

5

5137483

PLUG

M14X1.5

2шт.

6

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

2шт.

7

596854

SPRING

2шт.

8

20063570

BALL,10.32mm OD

2шт.

9

11057476

SNAP RING,M16, Int

1шт.

10

5137965

SCRAPER RING

1шт.

11

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

12

5143993

HYD CONNECTOR

1шт.

13

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

1шт.

14

5170395

BY-PASS VALVE

1шт.

15

5120761

SPRING,7.7mm OD x 20.5mm L

1шт.

16

5170396

DISC,6mm ID

1шт.

17

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

1шт.

18

5188811

PIN,4mm OD x 8mm L

1шт.
