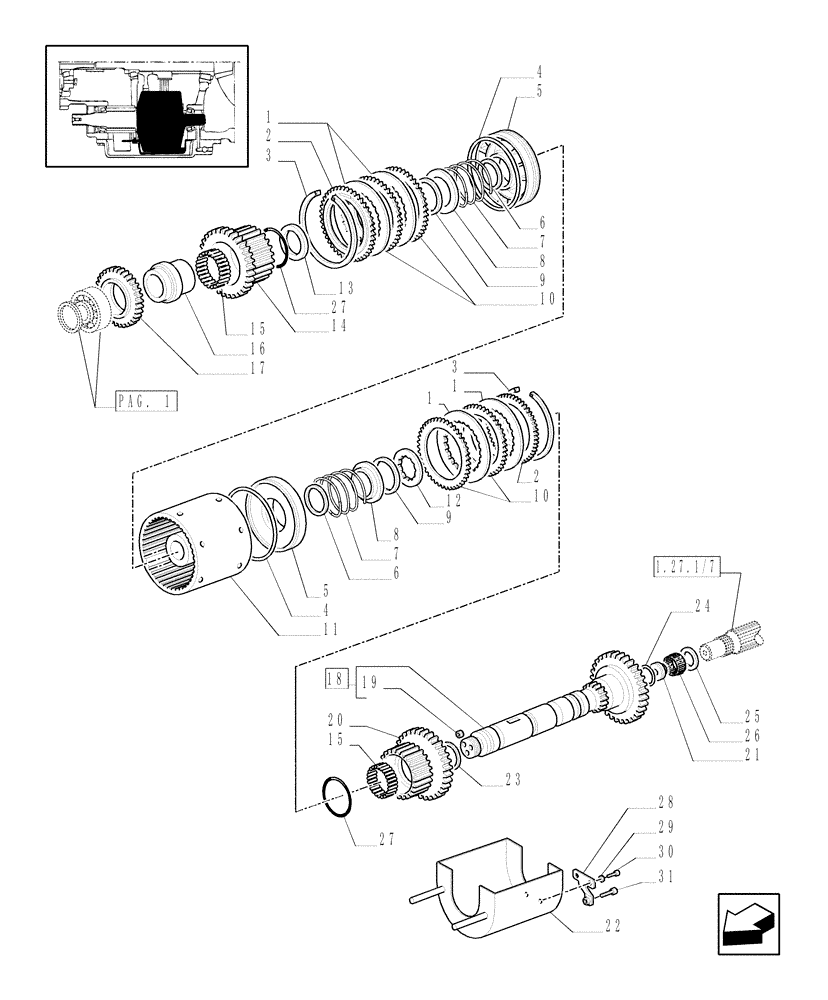

Запчасти Case IH JX80U (1.27.3/03[02]) - (VAR.748) 24+12 40KM/H, HI-LO SYNCHRONIZED REVERSER, HYDRAULIC P.T.O., DRIVEN SHAFT (03) - TRANSMISSION

1

5154744

CLUTCH DRIVING PLATE

10шт.

2

5188572

CLUTCH PLATE

2шт.

3

5124067

CIRCLIP

2шт.

4

5172413

SLIPPER,107.5mm ID x 115mm OD x 3.2mm Thk

2шт.

5

5188568

PISTON

2шт.

6

5137564

SEAL,48.55mm ID x 56mm OD x 3.2mm Thk

D=5.6X3.2

2шт.

7

5171681

SPRING,Compression, 79mm OD x 61mm L

2шт.

8

5188569

CUP

2шт.

9

5124059

CIRCLIP

D=52,8

2шт.

10

5137544

CLUTCH PLATE,98.8mm ID x 139.11mm OD x 1.8mm Thk

10шт.

11

5188557

HOUSING

1шт.

12

5192138

THRUST WASHER

1шт.

13

5150602

WASHER,40.1mm ID x 75mm OD x 4mm Thk

D=40X75X4

1шт.

14

5197894

GEAR

1шт.

15

5124054

ROLLER CAGE BEARING,55mm ID x 63mm OD x 25mm W

55X63X25

2шт.

16

5150601

RING

1шт.

17

5150600

DRIVEN GEAR

1шт.

18

5195434

MAIN SHAFT

1шт.

19

10269350

PLUG

M10 x 1.25

2шт.

20

5197895

GEAR

1шт.

21

5192150

SEAT/SLOT

1шт.

22

5190154

GUARD

1шт.

23

5194902

RING,33.9mm ID x 40mm OD x 2.43mm Thk

1шт.

24

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

25

5141500

RING,28.2mm ID x 34.5mm OD x 1mm Thk

28.2X34.5X1

1шт.

26

5107311

NEEDLE BEARING,28mm ID x 35mm OD x 27mm W

28X35X27

1шт.

27

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

4шт.

28

5190155

BRACKET

1шт.

29

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

30

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

31

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.
