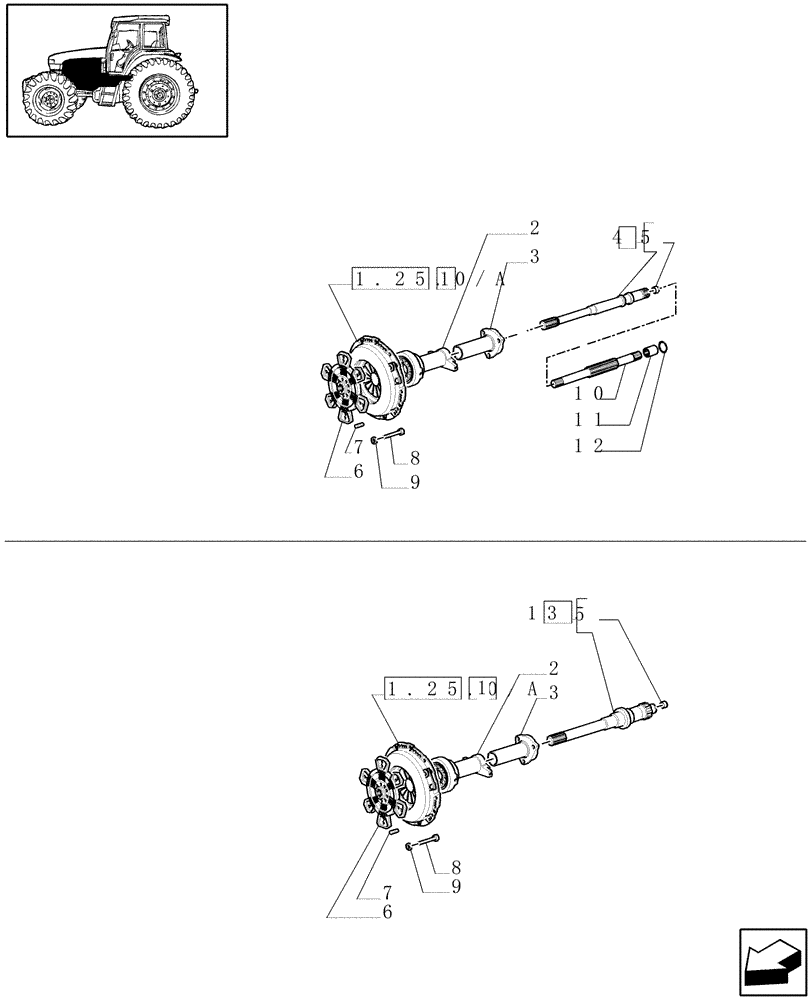

Запчасти Case IH JX80U (1.25.0/06) - (VAR.729) SYNCHRO MESH GEARED POWER TAKE -OFF 540 - 750 - 1000 RPM - CLUTCH AND P.T.O. SHAFTS (03) - TRANSMISSION

1

5189823

CLUTCH

1шт.

1

5189823R

REMAN-CLUTCH PLATE

1шт.

1

5189823C

CORE-CLUTCH PLATE

Return Number

1шт.

2

5166287

BEARING CARRIER,87mm ID x 118mm OD x 208.5mm L

Includes Bearing

1шт.

3

5164524

SHIELD

1шт.

4

5167549

SHAFT

JX70U, JX80U

1шт.

5

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

25X28X18

1шт.

6

5167928

CLUTCH PLATE,301mm OD

JX70U

1шт.

6

5167928R

REMAN-CLUTCH PLATE

JX70U

1шт.

6

5167928C

CORE-CLUTCH PLATE

Return Number

1шт.

6

5189825

CLUTCH PLATE

JX80U, JX90U

1шт.

6

5189825R

REMAN-CLUTCH PLATE

JX80U, JX90U

1шт.

6

5189825C

CORE-CLUTCH PLATE

Return Number

1шт.

7

4745893

DOWEL

2шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

9

11198071

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

8шт.

10

5183316

SHAFT

1шт.

11

5183317

SPLINED COUPLING,10T

1шт.

12

11067276

SNAP RING,M24, Ext

1шт.

13

5164529

SHAFT

708mm, JX90U

1шт.
