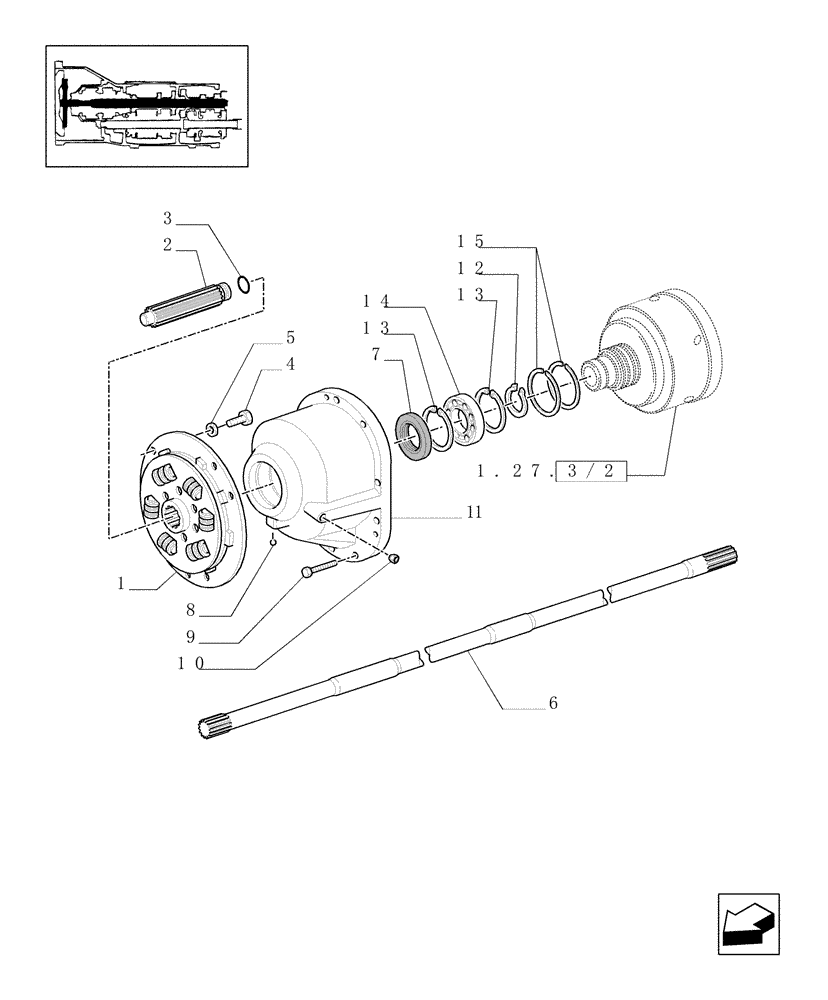

Запчасти Case IH JX80U (1.25.0/01) - (VAR.748/1) 24+24 40 KM/H, HI-LO, POWER SHUTTLE, HYDRAULIC P.T.O. - COUPLING, SHAFT AND COVER (03) - TRANSMISSION

1

5187958

DAMPER,262.5mm OD

1шт.

2

5165709

SHAFT

1шт.

3

14463381

O-RING,26.57mm ID x 3.52" Width

1шт.

4

16204230

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9

M10X20

6шт.

5

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

6шт.

6

5183483

SHAFT

1шт.

7

5122845

SEAL,55mm ID x 90mm OD x 10mm Thk

55X90X10

1шт.

8

20063460

BALL,7.14mm OD, Gr 100

D = 7.144

1шт.

9

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

9шт.

10

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

M12 x 1.25

1шт.

11

5181855

COVER

1шт.

12

11069576

SNAP RING,M55, Ext

1шт.

13

11062476

SNAP RING,M90, Int

2шт.

14

5122846

BALL BEARING,55mm ID x 90mm OD x 18mm W

55X90X18

1шт.

15

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

SEALRING

2шт.
