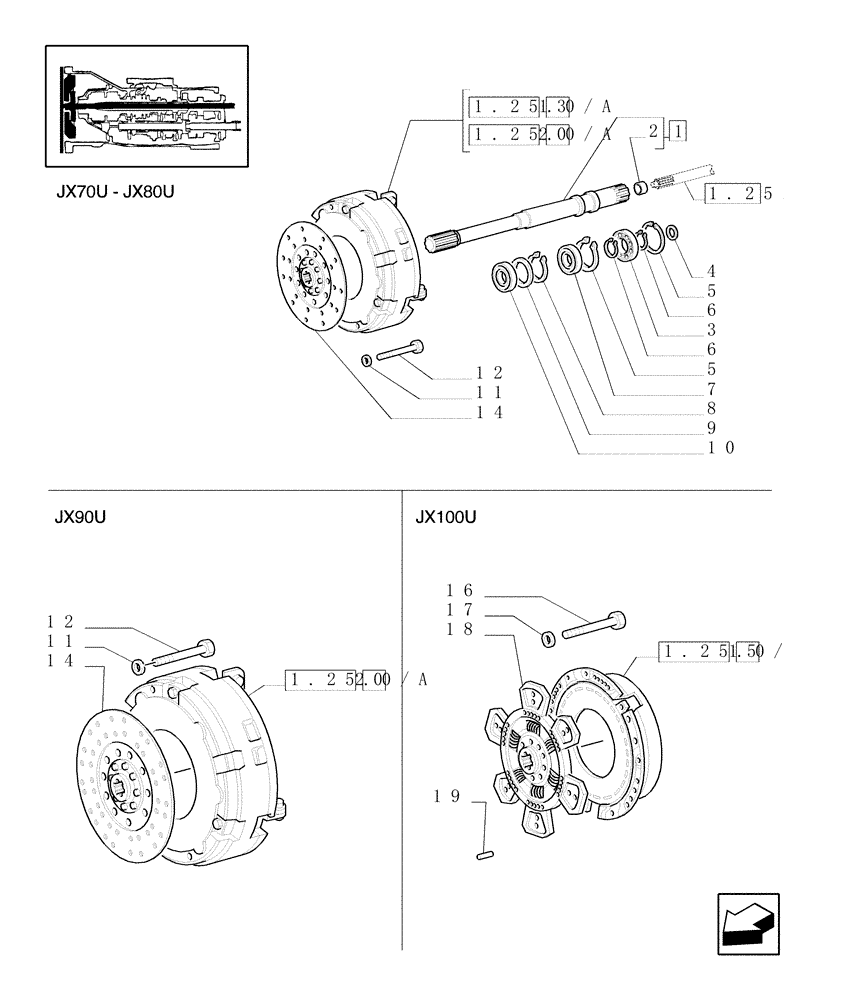

Запчасти Case IH JX80U (1.25.0) - CLUTCH - SHAFT, RETAINING RINGS (03) - TRANSMISSION

1

5167287

SHAFT

JX70U, JX80U

1шт.

2

4950081

BUSHING,25.08mm ID x 28.53mm OD x 18mm L

JX70U, JX80U

1шт.

3

26794660

BALL BEARING,50.00mm x 90.00mm x 20.00mm

50 x 90 x 20 mm, JX70U, JX80U

1шт.

4

4985295

SEAL

25X31X7, JX70U, JX80U

1шт.

5

11062476

SNAP RING,M90, Int

JX70U, JX80U

2шт.

6

11069376

SNAP RING,M50, Ext

JX70U, JX80U

2шт.

7

5164500

SEAL,50mm ID x 90mm OD x 10mm Thk

50X90X10, JX70U, JX80U

1шт.

8

11062176

CIRCLIP,M85, Int

JX70U, JX80U

1шт.

9

5164517

RING

68X84, JX70U, JX80U

1шт.

10

24905130

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

JX70U, JX80U

1шт.

11

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

JX70U, JX80U, JX90U

6шт.

12

11234724

BOLT,Hex, M10 x 1.25 x 45, 8.8

JX70U, JX80U, JX90U

6шт.

13

5167933

CLUTCH

12"/12", JX70U

1шт.

13

5167933R

REMAN-CLUTCH PLATE

JX70U

1шт.

13

5167933C

CORE-CLUTCH PLATE

Return Number

1шт.

14

5167937

CLUTCH PLATE,310mm OD

12"/12", JX70U, JX80U, JX90U

1шт.

14

5167937R

REMAN-CLUTCH PLATE

JX70U, JX80U, JX90U

1шт.

14

5167937C

CORE-CLUTCH PLATE

Return Number

1шт.

15

5189823

CLUTCH

JX100U

1шт.

15

5189823R

REMAN-CLUTCH PLATE

JX100U

1шт.

15

5189823C

CORE-CLUTCH PLATE

Return Number

1шт.

16

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

JX100U

8шт.

17

11198071

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

JX100U

8шт.

18

5189825

CLUTCH PLATE

12"/12", JX100U

1шт.

18

5189825R

REMAN-CLUTCH PLATE

JX100U

1шт.

18

5189825C

CORE-CLUTCH PLATE

Return Number

1шт.

19

4745893

DOWEL

JX100U

1шт.

20

5189875

CLUTCH,360mm OD

12"/12", JX70U, JX80U

1шт.

20

5189875R

REMAN-CLUTCH PLATE

JX70U, JX80U, JX1080U, JX1090U

1шт.

20

5189875C

CORE-CLUTCH PLATE

Return Number

1шт.
