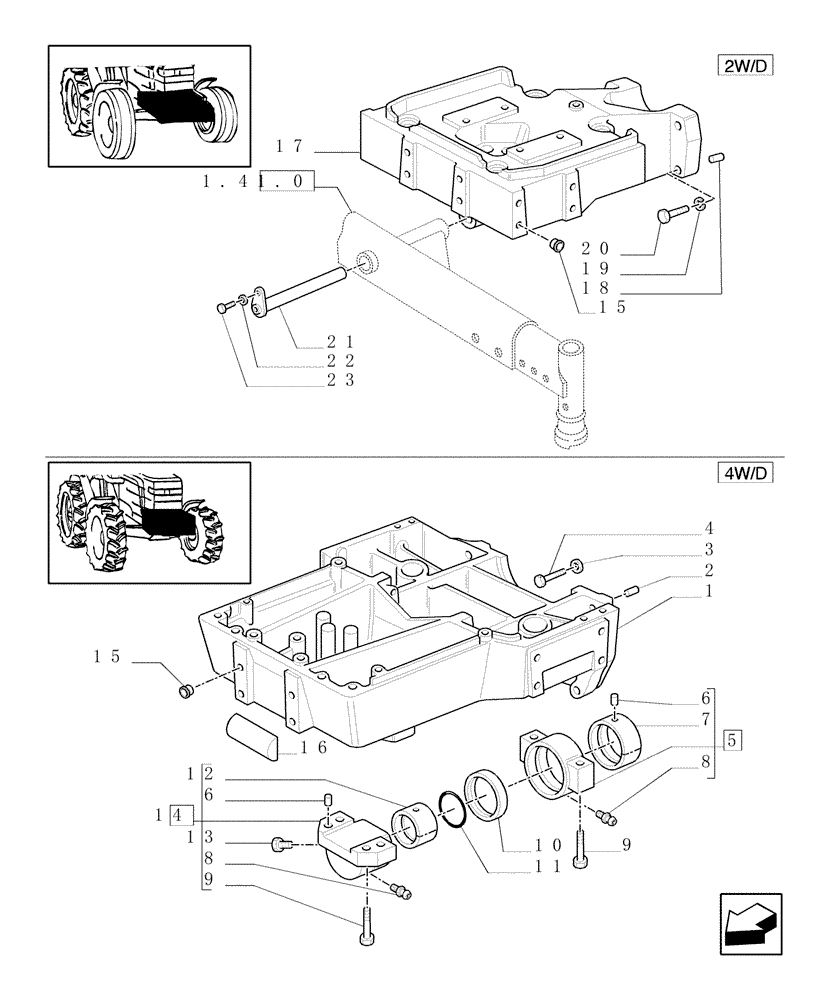

Запчасти Case IH JX80U (1.21.1) - AXLE FASTENING FRONT SUPPORT (03) - TRANSMISSION

1

5199487

SUPPORT

1шт.

2

4668595

DOWEL,18mm OD x 22mm L

M18X22

2шт.

3

10517374

LOCK WASHER,18.2mm ID x 30.6mm OD x 4mm Thk

4шт.

4

15984637

BOLT,Hex, M18 x 1.5 x 70mm, Cl 10.9

4шт.

5

5147613

SUPPORT

1шт.

6

10837710

DOWEL,M10 x 25

4шт.

7

5129385

BUSHING,99.15mm ID x 103.7mm OD x 52mm L

Rear

1шт.

8

13407211

LUBE NIPPLE,M10 x 1

2шт.

9

14272031

BOLT,Hex, M18 x 1.5 x 65mm

M18 x 1.5 x 65

4шт.

10

5188609

SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk

M99X115X7.5

1шт.

11

14471380

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

JX70U, JX80U

1шт.

12

5101112

BUSHING,52.72mm ID x 57.16mm OD x 42mm L

52X57X42

1шт.

13

13411117

VALVE PRESSURE RELIE,M10, Black

1шт.

14

5140452

SUPPORT

Front, JX90U, JX100U

1шт.

14

5146124

SUPPORT

Front, JX70U, JX80U

1шт.

15

5171790

PLUG,18mm, Black

D = 18

16шт.

16

5176989

PLUG

1шт.

17

5199488

SUPPORT

1шт.

18

4668595

DOWEL,18mm OD x 22mm L

2шт.

19

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

20

15984637

BOLT,Hex, M18 x 1.5 x 70mm, Cl 10.9

4шт.

21

5110400

PIVOT PIN,400mm L

1шт.

22

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

23

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.
