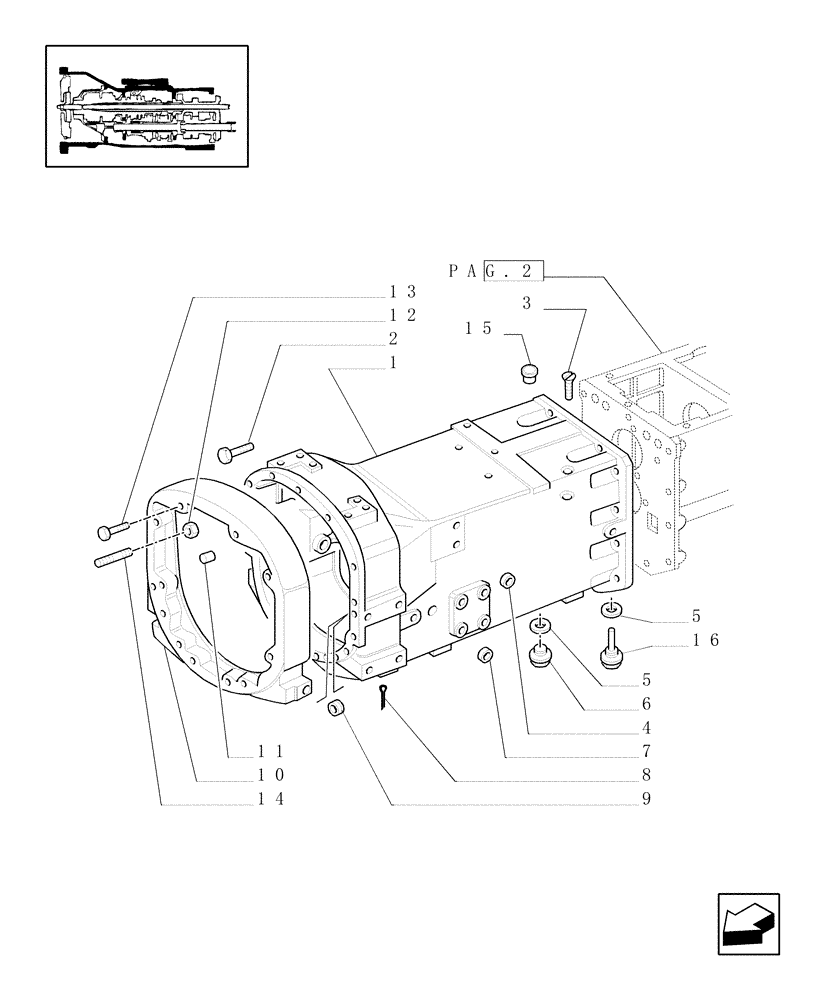

Запчасти Case IH JX80U (1.21.0[01]) - TRACTOR BODY - CLUTCH BOX AND RELEVANT PARTS (03) - TRANSMISSION

1

5167176

HOUSING

1шт.

2

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

11шт.

3

13305311

SCREW,Pozidriv Flat Hd, Csk, M10 x 20mm, Cl 5.8

1шт.

4

5133142

BUSHING,24.05mm ID x 27mm OD x 30mm L

2шт.

4

5171614

PLUG,27mm OD

D= 27MM VAR.007, JX80U, JX90U

2шт.

5

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

6

10305171

PLUG,M22 x 1.5 x 21

1шт.

7

14328701

PLUG,M20, Tapered

1шт.

8

10798201

COTTER PIN,M6.3 x 32

1шт.

9

14329801

PLUG,M32, Tapered

2шт.

10

5166241

SPACER

1шт.

11

4658441

DOWEL,10mm OD x 20mm L

2шт.

12

16101524

NUT,M12 x 1.25, Cl 10

8шт.

13

5166320

BOLT,Hex, M12 x 1.25 x 105mm, Cl 8.8

M12 x 1.25 x 105

4шт.

14

13972324

STUD

M12 x 1.25 x 125

8шт.

15

5106488

PLUG

6шт.

16

5118991

PLUG,M22 x 1.5

M22X1.5

1шт.
