(1.17.5) - RADIATOR PROTECTIVE SEALS - CONVEYOR, GUARDS

Запчасти Case IH JX80U (1.17.5) - RADIATOR PROTECTIVE SEALS - CONVEYOR, GUARDS (02) - ENGINE EQUIPMENT

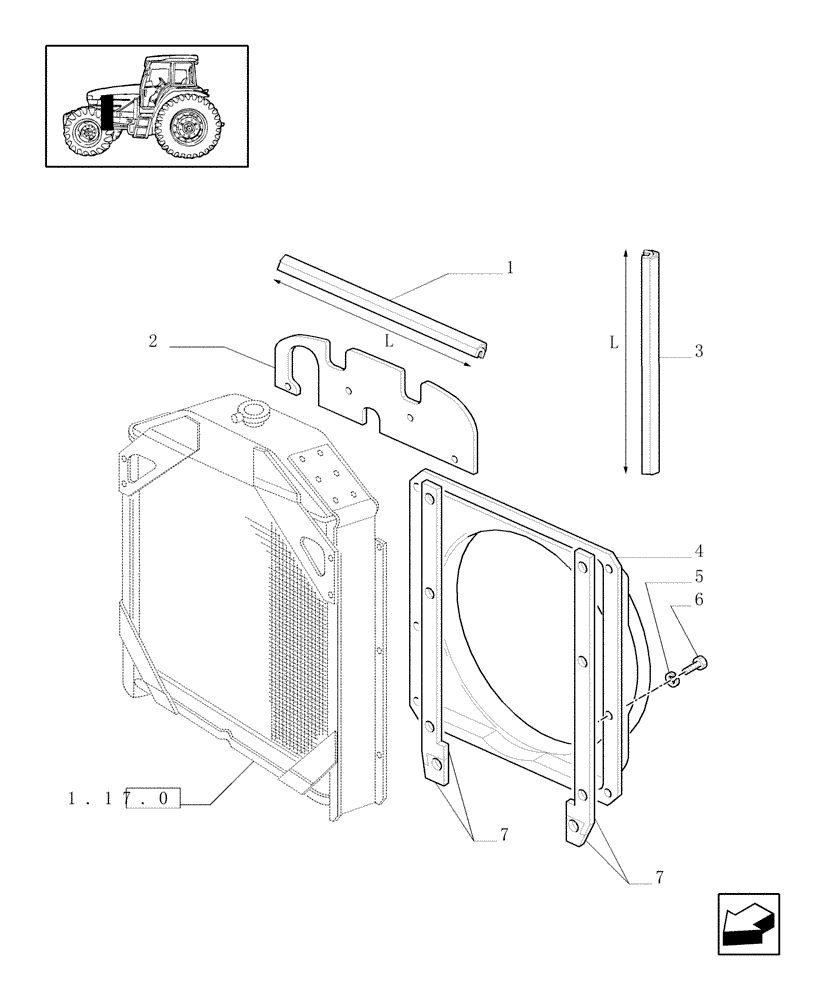

Схема запчастей Case IH JX80U - (1.17.5) - RADIATOR PROTECTIVE SEALS - CONVEYOR, GUARDS (02) - ENGINE EQUIPMENT
l
5
1.17.0
1
l
7
3
4
7
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5166555

RUBBER SEAL,484mm L

L = 484MM

1шт.

2

47123055

GUARD

1шт.

3

47124283

SEAL

L = 600MM

2шт.

4

5166240

GUARD

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

6

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

6шт.

7

47123054

GUARD

2шт.
