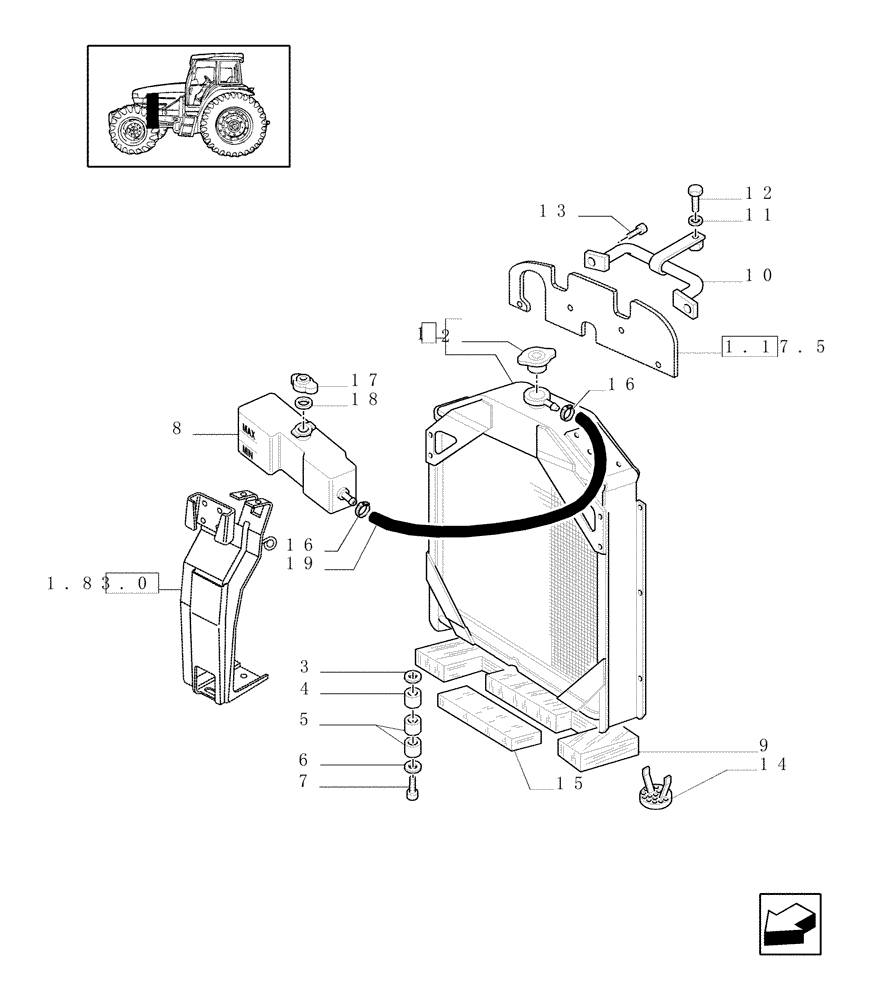

Запчасти Case IH JX80U (1.17.0) - RADIATOR AND COOLING TANK (02) - ENGINE EQUIPMENT

1

5169271

RADIATOR

JX70U

1шт.

1

5169275

RADIATOR

JX80U, JX90U, JX100U

1шт.

2

4999682

RADIATOR CAP,Vented

1шт.

3

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

4шт.

4

5108225

RUBBER MOUNTING

4шт.

5

5102703

SPACER,11mm ID x 15mm OD x 63mm L

2шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

7

15971624

SCREW,Hex, M10 x 1.25 x 90mm, Cl 8.8

2шт.

8

5176648

TANK

1шт.

9

5180861

INSULATOR

490X85X20

1шт.

10

5171485

BRACKET

JX80U, JX90U, JX100U

1шт.

11

17798274

WASHER

JX80U, JX90U, JX100U

1шт.

12

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

JX80U, JX90U, JX100U

1шт.

13

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

JX80U, JX90U, JX100U

2шт.

14

5120218

GRILLE

1шт.

15

5180863

FOAM INSULATION

240X45X20

1шт.

16

10186590

CLAMP,11mm - 13mm

2шт.

17

4274034

CAP

1шт.

18

4153008

SEAL

SEALRING

1шт.

19

19053181

FLEXIBLE HOSE

1шт.
