Запчасти Case IH JX70U (1.14.7) - FUEL TANK SUPPORT - BRACKETS, TIE-RODS - SUPPORTS (02) - ENGINE EQUIPMENT

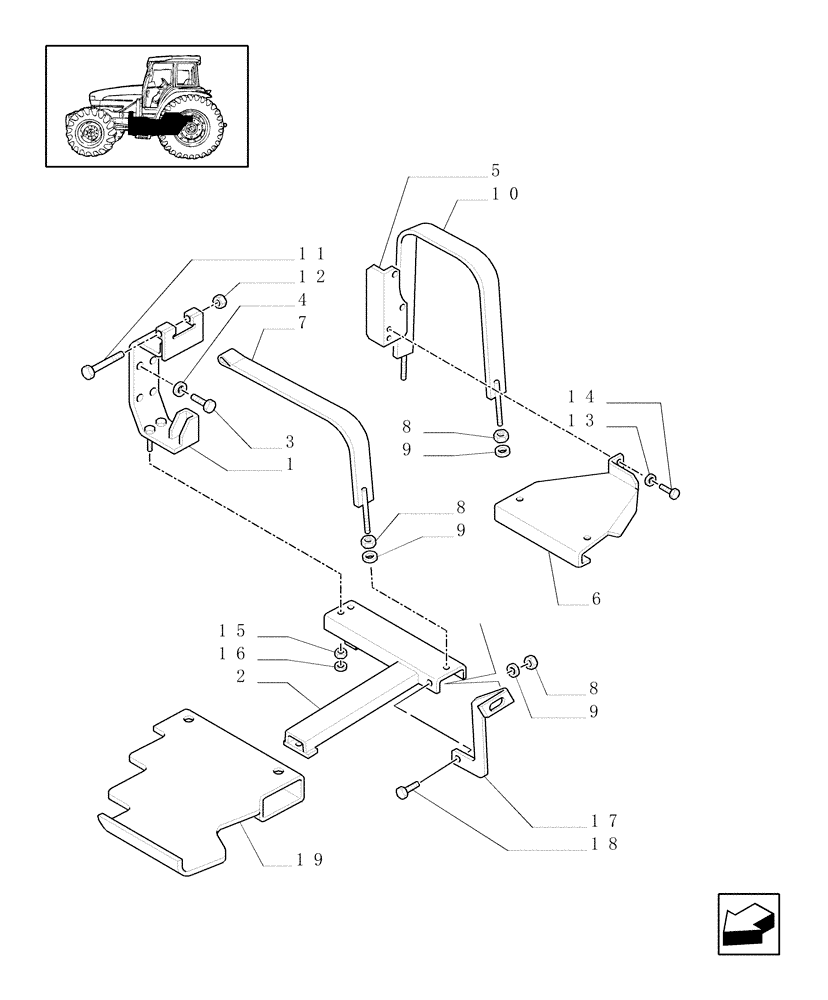

Схема запчастей Case IH JX70U - (1.14.7) - FUEL TANK SUPPORT - BRACKETS, TIE-RODS - SUPPORTS (02) - ENGINE EQUIPMENT
7
9
11
12
4
5
3
1
8
9
8
19
10
9
6
15
18
17
8
14
13
16
2

Артикул

Название

Примечание

Количество

1

5185845

BRACKET

JX90U, JX100U

1шт.

1

5185845

BRACKET

JX70U, JX80U

1шт.

2

5186471

BRACKET

JX70U, JX80U

1шт.

3

11255924

BOLT,Hex, M14 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

4

10517174

LOCK WASHER,14.2mm ID x 24.1mm OD x 3.5mm Thk

M14

4шт.

5

82004968

BRACKET

Rear

1шт.

6

82004970

SUPPORT

1шт.

7

82004971

SECURING STRAP

1шт.

8

11701721

NUT,M10, Cl 10

8шт.

9

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

8шт.

10

5182165

SECURING STRAP

JX90U, JX100U

1шт.

Parts fitted on tractors JX70U JX80U equipped w/VAR. 044

1шт.

10

82004972

SECURING STRAP

JX70U, JX80U

1шт.

11

87015575

BOLT,Hex, M10 x 85mm, Cl 8.8

1шт.

12

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

13

10516874

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10X1.25X80

2шт.

14

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.

15

10517074

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

M12

2шт.

16

16101524

NUT,M12 x 1.25, Cl 10

2шт.

17

5182094

BRACKET

1шт.

18

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

19

5186471

BRACKET

JX90U, JX100U

1шт.

Parts fitted on tractors JX70U JX80U equipped w/VAR. 044

1шт.

Выбрано товаров: 23
