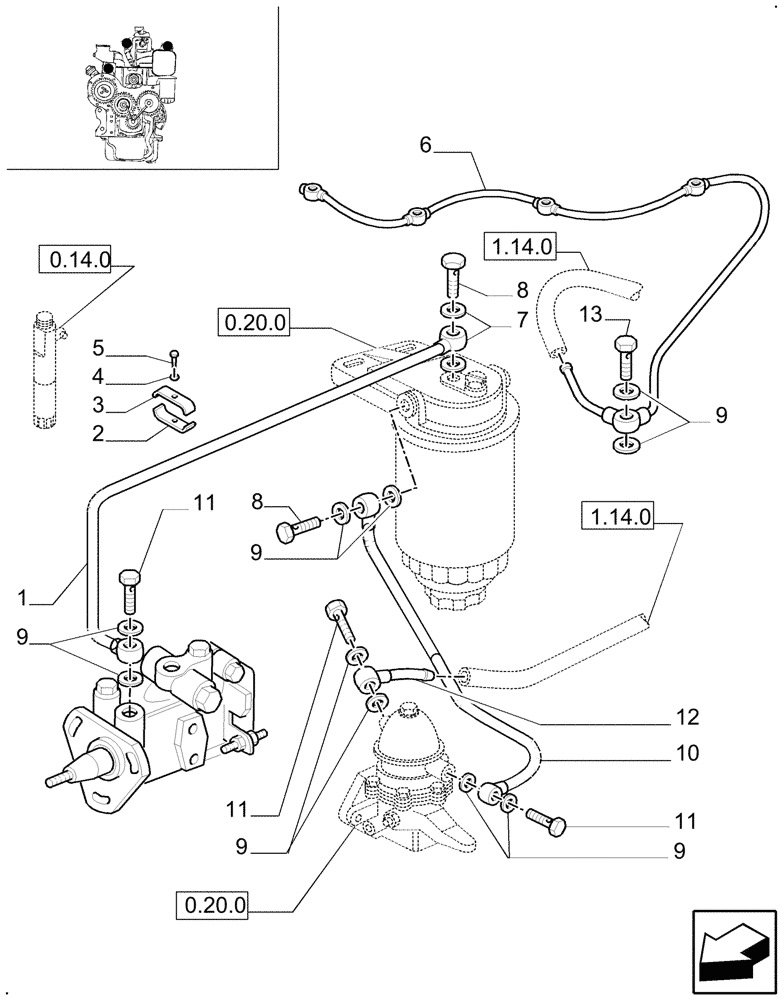

Запчасти Case IH JX70U (0.20.3_7-8060) - FUEL LINES (01) - ENGINE

1

98465567

RIGID TUBE

JX70U, JX80U, JX90U

1шт.

1

99449110

RIGID TUBE

JX100U

1шт.

2

4002890

CLAMP

1шт.

3

607942

CLAMP

1шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

6

4777224

RETURN PIPE

JX80U, JX90U, JX100U

1шт.

7

98474308

SEALING WASHER,16mm ID x 22mm OD x 1.5mm Thk

D=14 x 22 x 1.5

4шт.

8

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14X1.5X30

2шт.

9

98474306

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

10шт.

10

98465899

RIGID TUBE

JX70U, JX80U, JX90U

1шт.

10

99449109

RIGID TUBE

JX100U

1шт.

11

4864082

BANJO BOLT

M12 x 1.5 x 25

4шт.

12

98417685

SWIVEL CONNECTION

1шт.

12

98416591

FITTING

1шт.
