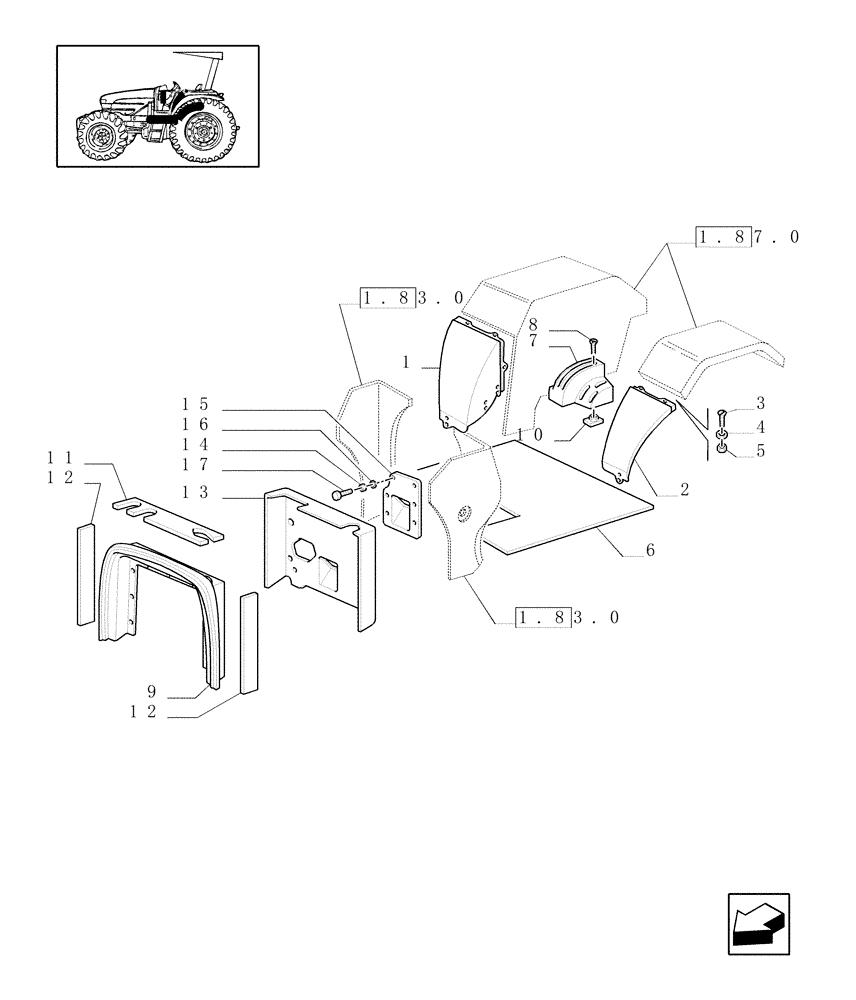

Запчасти Case IH JX70U (1.87.1) - MATTING & GUARDS (L/CAB) (08) - SHEET METAL

1

5171232

FENDER EXTENSION

Front, RH

1шт.

2

5171231

FENDER EXTENSION

Front, LH

1шт.

3

14778411

SCREW,Cross Rec Cheese Hd, M6 x 20mm, Cl 5.8

12шт.

4

12647624

WASHER,6mm ID x 16mm OD

6X16

12шт.

5

12574211

NUT,M6 x 1, Cl 8

12шт.

6

47135694

MAT

1шт.

7

5168810

COVER

1шт.

8

15904006

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 32

, Serial Range: -1305008

3шт.

8

15959504

SELF-TAP SCREW,Pan Hd, M5 x 30

, Start Serial: 1305009

3шт.

9

47123188

SOFT TRIM

1шт.

10

14115980

NUT

, Serial Range: -1305008

3шт.

10

14115780

BLOCK

, Start Serial: 1305009

3шт.

11

47125206

INSULATOR

1шт.

12

47125207

INSULATOR

2шт.

13

47123193

INSULATOR

1шт.

14

12574211

NUT,M6 x 1, Cl 8

15шт.

15

47125187

FOAM INSULATION

1шт.

16

14447021

WASHER,5.5mm ID x 15mm OD x 1mm Thk

6шт.

17

14778914

SCREW,Cross Rec Cheese Hd, M6 x 22mm, Cl 5.8

2шт.

17

14064111

BOLT,M6 x 25mm

M6X25

2шт.
