Запчасти Case IH JX70U (1.82.7/14[03]) - (VAR.419) THREE CONTROL VALVES BOSCH - QUICK COUPLINGS - FLEXIBLE CABLE (07) - HYDRAULIC SYSTEM

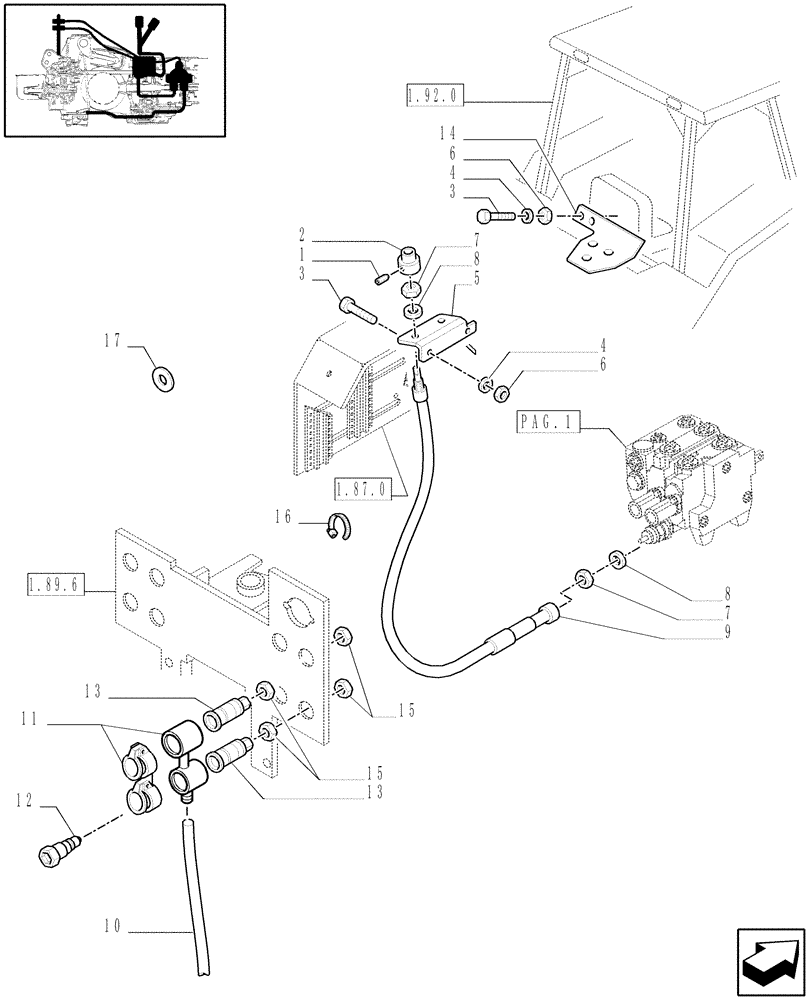

Схема запчастей Case IH JX70U - (1.82.7/14[03]) - (VAR.419) THREE CONTROL VALVES BOSCH - QUICK COUPLINGS - FLEXIBLE CABLE (07) - HYDRAULIC SYSTEM
12
16
15
1.92.0
13
17
15
10
3
1.89.6
14
1.87.0
pag.1
5
6
11
7
4
6
8
8
9
4
2
7
1
3
13

Артикул

Название

Примечание

Количество

1

5174064

HEX SOC SCREW,#8 - 32 x 1/4", Gr 5.8

2шт.

2

5182632

KNOB

2шт.

3

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

5

47130272

BRACKET

L/CAB

1шт.

6

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

2шт.

7

16111214

NUT,M14 x 1, Cl 04

4шт.

8

12605879

LOCK WASHER

4шт.

9

47129872

CABLE,820mm L

2шт.

10

19056687

HOSE,7.50 mm ID

1шт.

11

47123645

DUST CAP

Tandem, Black

2шт.

11

47123644

PROTECTION CAP

Single

2шт.

12

5101741

QUICK MALE COUPLING

6шт.

1534623C1

SEAL KIT

1шт.

13

82004816

PUSH-PULL COUPLING

include p/n 1534623C1

6шт.

14

5173892

SUPPORT

W/CAB

1шт.

15

5129168

BHD LOCK NUT,M24 x 1.5

M24

12шт.

16

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.

17

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

Выбрано товаров: 19
