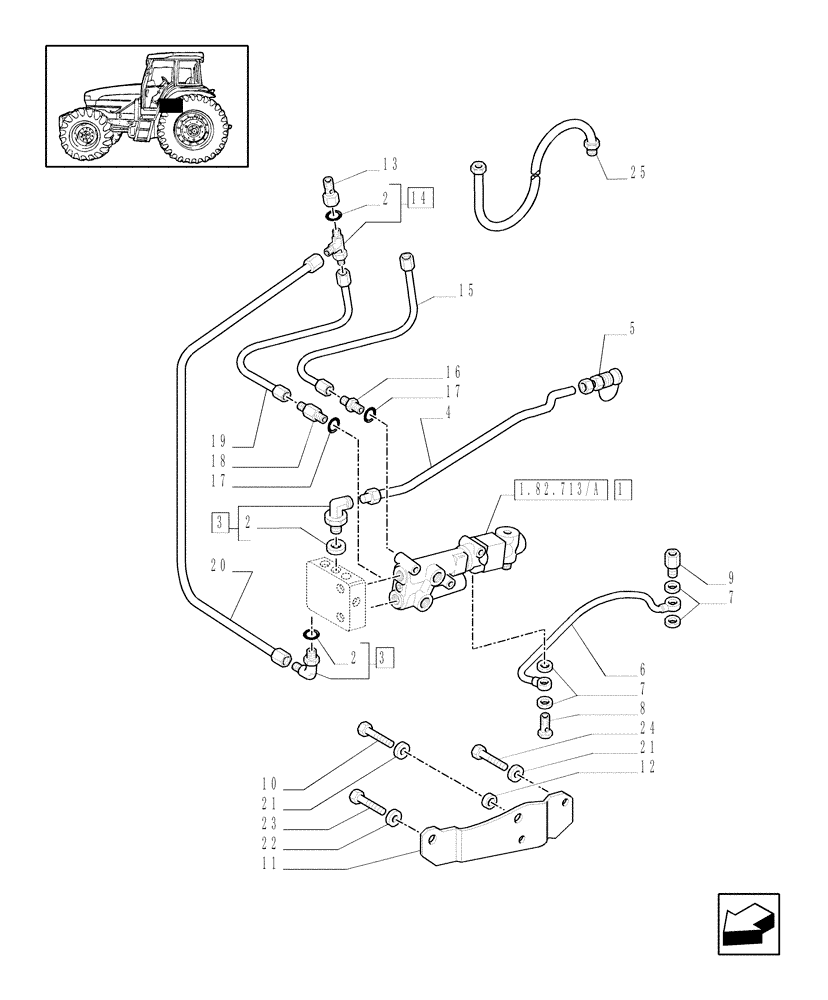

Запчасти Case IH JX70U (1.82.713/03[01]) - (VAR.412) TRAILER BRAKE VALVE (CCLS POWER-SHUTTLE) ITALY - PARTS (07) - HYDRAULIC SYSTEM

1

5165720

TRAILER BRAKE VALVE

1шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

3шт.

3

5157557

ELBOW,M18 x 1.5

90°, 3/4 -16UNF M18X1,5

2шт.

4

47123650

HYD TUBE

1шт.

5

44015354

QUICK MALE COUPLING

1шт.

6

47124964

HYD TUBE

1шт.

7

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X18X1.5

4шт.

8

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

9

5113983

BANJO BOLT,Hex, M12 x 1,25 x 44mm L

1шт.

10

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

1шт.

10

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

11

5157573

SUPPORT

1шт.

12

5157548

SPACER,8.5mm ID x 18mm OD x 14mm L

1шт.

13

47124961

BANJO BOLT

1шт.

14

5157558

TEE,M18 x 1.5 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

3/4 -16UNF M18X1,5

1шт.

15

47123640

HYD TUBE

459.9mm L.

1шт.

16

5155665

HYD CONNECTOR

1шт.

17

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

18

5157483

VALVE, PRESSURE CONT

1шт.

19

47123635

HYD TUBE

1шт.

20

47123651

HYD TUBE

1шт.

21

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

22

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

23

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

24

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

25

47123633

HYD TUBE

1шт.
