Запчасти Case IH JX70U (1.82.7/13[02]) - (VAR.411) TWO CONTROL VALVES BOSCH - SUPPORT, PIPES (07) - HYDRAULIC SYSTEM

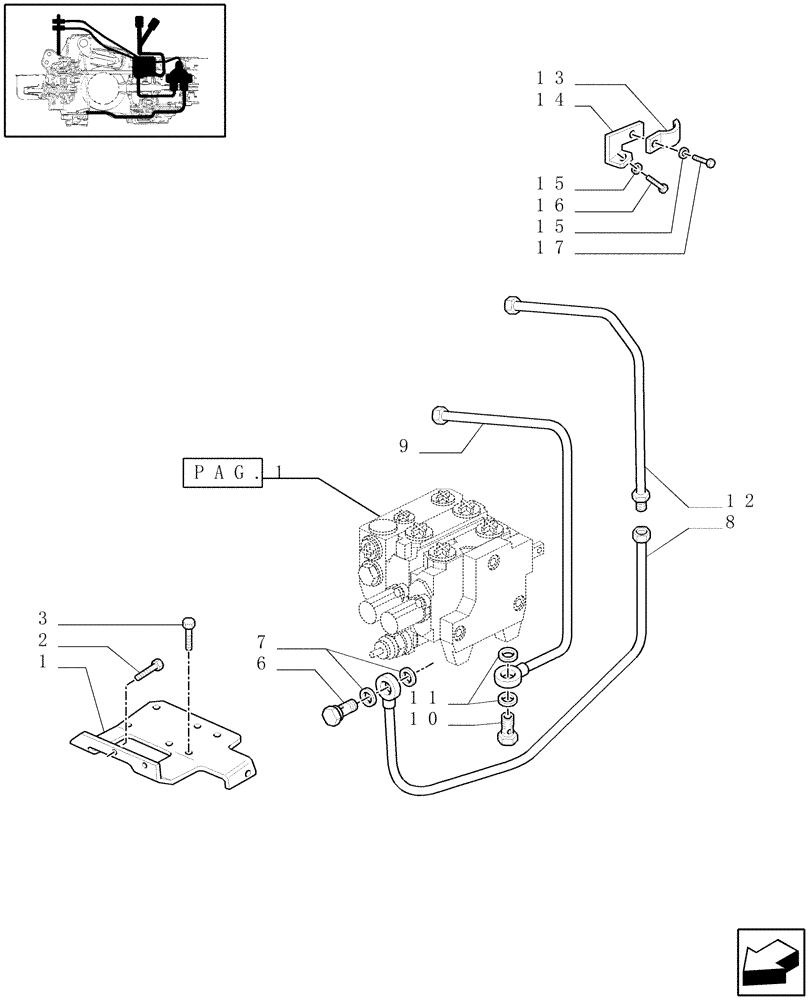

Схема запчастей Case IH JX70U - (1.82.7/13[02]) - (VAR.411) TWO CONTROL VALVES BOSCH - SUPPORT, PIPES (07) - HYDRAULIC SYSTEM
9
15
14
13
8
12
15
6
3
17
1
11
10
pag.1
7
2
16

Артикул

Название

Примечание

Количество

1

47123301

SUPPORT

1шт.

2

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

3

11109221

BOLT,Hex, M12 x 22mm, Cl 8.8, Full Thd

4шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

5148919

ELBOW

1шт.

6

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

7

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

2шт.

8

47123636

HYD TUBE

1шт.

9

47123635

HYD TUBE

1шт.

10

47124882

BANJO BOLT

M27X2X45

1шт.

11

47124968

SEALING WASHER

D=27

2шт.

12

5179392

HYD TUBE

W/CAB

1шт.

13

5156414

CLAMP,20mm ID, 6.5mm Bolt Hole, J Type

W/CAB

1шт.

14

5179396

BRACKET

W/CAB

1шт.

15

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

W/Cab

2шт.

16

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

W/Cab

2шт.

17

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

W/Cab

1шт.

Выбрано товаров: 17
