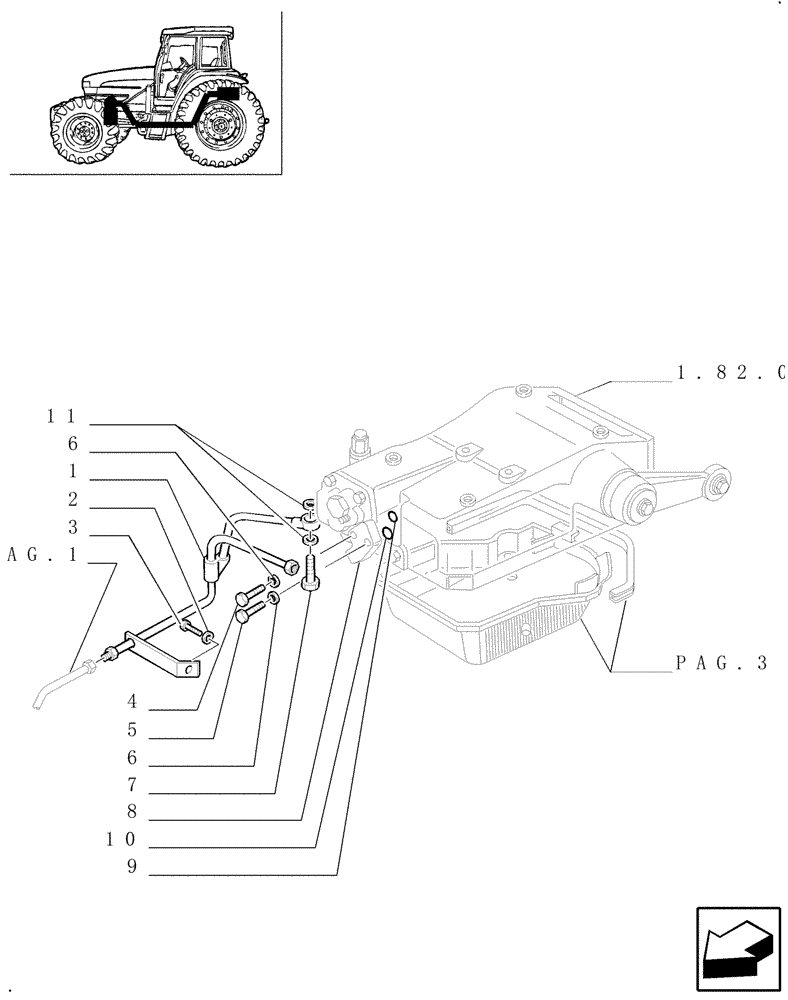

Запчасти Case IH JX70U (1.82.1[02]) - LIFT - PIPES & PARTS (07) - HYDRAULIC SYSTEM

1

5171395

RIGID TUBE

1шт.

2

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

3

15540024

BOLT,Hex, M12 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

4

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

1шт.

5

14308221

HEX SOC SCREW,M10 x 1.25 x 65mm, Cl 8.8

1шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

7

10184417

BANJO BOLT,M16 x 1.5 x 31mm

1шт.

8

5129166

HYD CONNECTOR

1шт.

9

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

10

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

2шт.

11

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

2шт.
