Запчасти Case IH JX70U (1.80.1/05[01]) - (VAR.727) SYNCHRO MESH GEARED POWER TAKE -OFF 540 RPM - BOX AND COVER (07) - HYDRAULIC SYSTEM

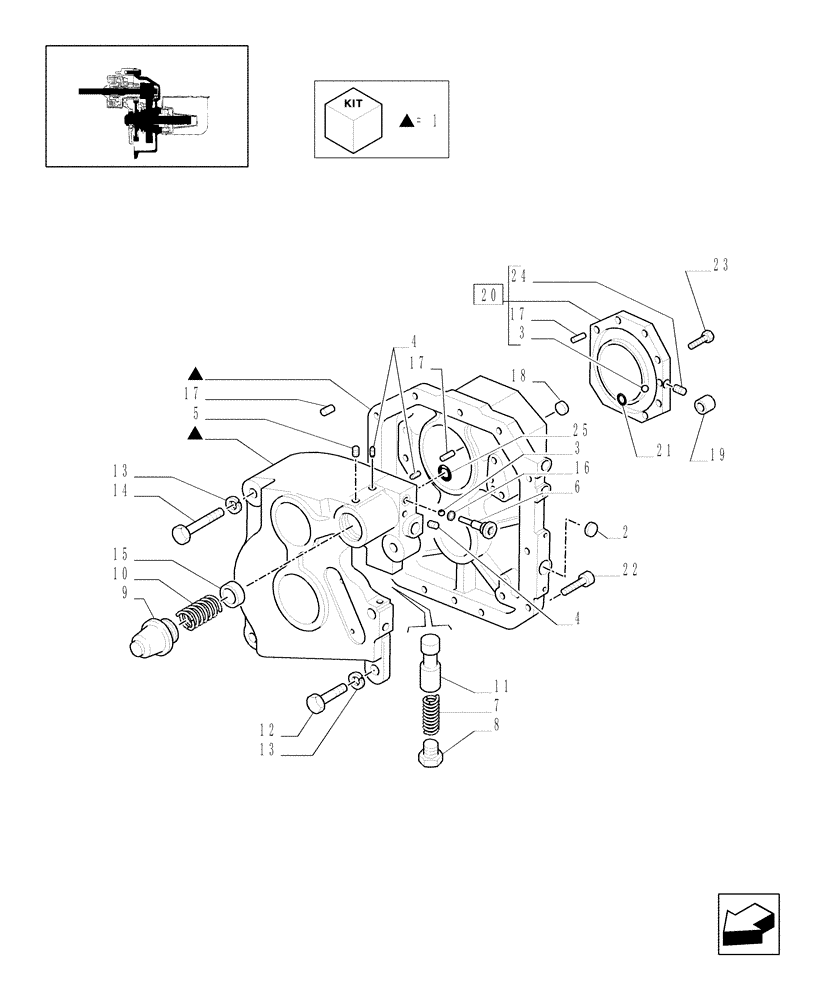

Схема запчастей Case IH JX70U - (1.80.1/05[01]) - (VAR.727) SYNCHRO MESH GEARED POWER TAKE -OFF 540 RPM - BOX AND COVER (07) - HYDRAULIC SYSTEM
20
2
24
16
17
4
18
1
22
19
11
13
6
21
3
17
17
13
9
3
4
12
10
5
25
23
7
8
15
1
14
1

Артикул

Название

Примечание

Количество

1

5189196

SUPPORT

INCL. 2, 4, 5

1шт.

Three hydraulic ports along left side of cover.

1шт.

2

14328701

PLUG,M20, Tapered

2шт.

3

20419310

BALL

2шт.

4

10269150

PLUG,M6 x 1 x 60mm L

M6

2шт.

5

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

M10 x 1.25

2шт.

6

5183078

PLUG

1шт.

7

5166012

SPRING,Compression, 7.5mm OD x 57mm L

1шт.

8

5180551

PLUG

M16X1.5

1шт.

9

5197632

CAP

1шт.

10

5137481

SPRING,Compression, 32mm OD x 122mm L

1шт.

11

5194481

PISTON

1шт.

12

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

13

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

14

15540924

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

15

5137480

PISTON,40mm OD

1шт.

16

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

17

10839710

DOWEL,M10 x 15.00mm

M10 x 15

4шт.

18

14328601

PLUG,M18, Tapered

1шт.

19

5166305

SPACER

9X15X12

2шт.

20

5165974

COVER

1шт.

21

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

22

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

23

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

24

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

M10 x 1.25

1шт.

25

14456881

O-RING,0.362" ID x 0.103" Width

1шт.

Выбрано товаров: 26
