Запчасти Case IH JX70U (1.75.4/01[01]) - (VAR.275-279) POWER SHUTTLE - HI-LO - 30-40 KMH - HYDRAULIC PTO - ELECTRIC CABLES (06) - ELECTRICAL SYSTEMS

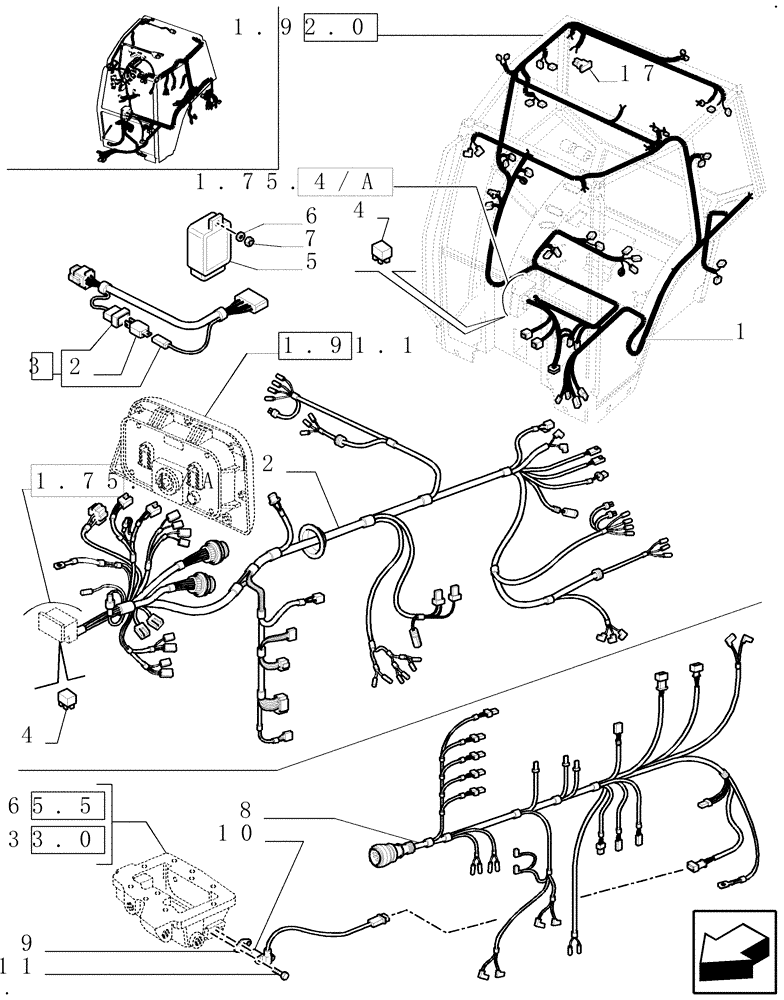

Схема запчастей Case IH JX70U - (1.75.4/01[01]) - (VAR.275-279) POWER SHUTTLE - HI-LO - 30-40 KMH - HYDRAULIC PTO - ELECTRIC CABLES (06) - ELECTRICAL SYSTEMS
3
1.65.5
1.75.4/a
4
8
1.33.0
2
17
9
1.92.0
4
5
1.75.4/a
7
6
12
1
10
1.91.1
11

Артикул

Название

Примечание

Количество

1

47126579

ELECTRIC CABLE

Main, Serial Range: -C4842

1шт.

1

47130054

ELECTRIC CABLE

Main, Serial Range: D4842-C4850

1шт.

1

47132064

ELECTRIC CABLE

Main, Start Serial: D4850

1шт.

2

83929594

DIODE

1шт.

3

5188081

WIRE HARNESS

W/Buzzer Module for Operator Presense Circut

1шт.

4

83989947

RELAY,70A

1шт.

5

5188605

BUZZER,12V, 0.7A

1шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

8

5189036

WIRE HARNESS

, Serial Range: -C4742

1шт.

8

5198947

ELECTRIC CABLE

Transmission, Start Serial: D4742

1шт.

9

5165075

SPACER

1шт.

10

5150991

SENSOR

PTO Speed

1шт.

11

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

2шт.

12

5189039

ELECTRIC CABLE

Main, W/Power Shuttle, L/CAB

1шт.

12

47126527

ELECTRIC CABLE

Main, W/Power Shuttle, L/CAB, ISO

1шт.

Выбрано товаров: 16
