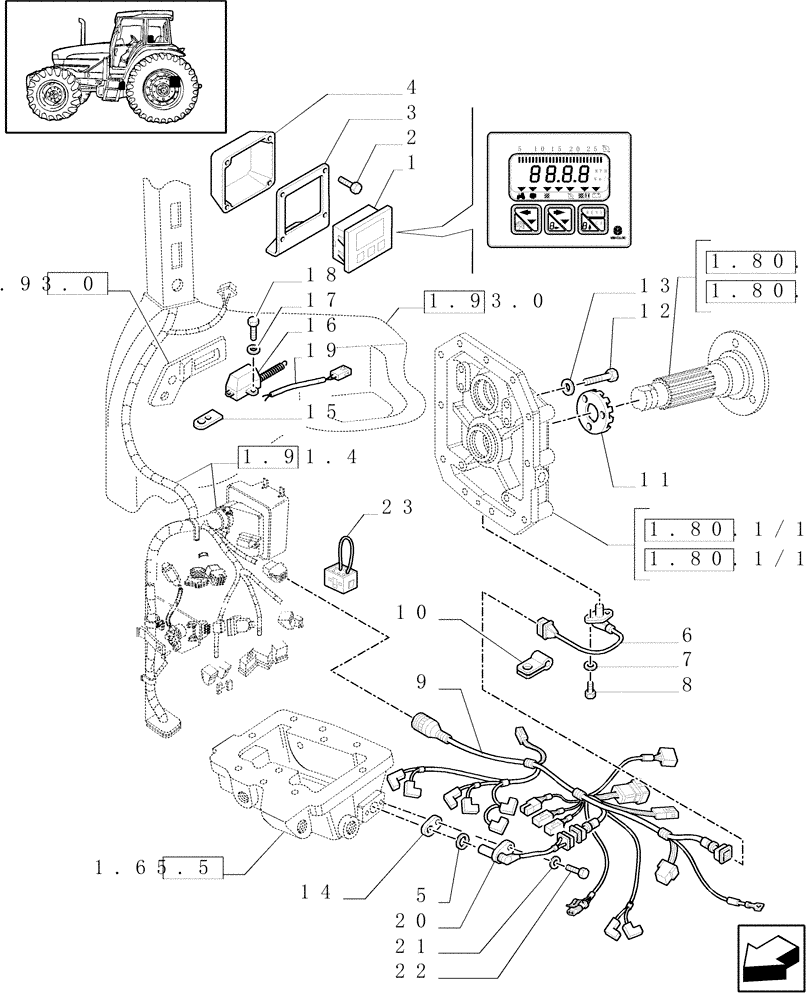

Запчасти Case IH JX70U (1.75.0/04) - (VAR.745-746) DIGITAL INSTRUMENT CLUSTER (WITH CAB) - ELECTRIC CABLES - SENSORS (06) - ELECTRICAL SYSTEMS

1

47125844

INSTRUMENT CLUSTER

1шт.

2

15642504

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

4шт.

3

5174281

SUPPORT

1шт.

4

5170828

COVER

1шт.

5

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

5150991

SENSOR

PTO SPEED

1шт.

7

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

8

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

2шт.

9

5198949

WIRE HARNESS

1шт.

10

5164323

CLAMP

(VAR. 745)

1шт.

11

5163279

WHEEL

(VAR. 745)

1шт.

12

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

(VAR. 745)

4шт.

13

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

(VAR. 745)

4шт.

14

5165826

FLANGE

1шт.

15

5167199

PLATE

1шт.

16

5121786

LIGHT SWITCH

Stop Light

1шт.

17

80322355

WASHER

D=6

2шт.

18

13272214

SCREW,Pozidriv Pan Hd, M4 x 16mm, Cl 5.8, Full Thd

2шт.

19

5198899

WIRE HARNESS

1шт.

20

5162472

SENSOR

1шт.

21

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

1шт.

22

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

23

5198983

BRIDGE

1шт.
