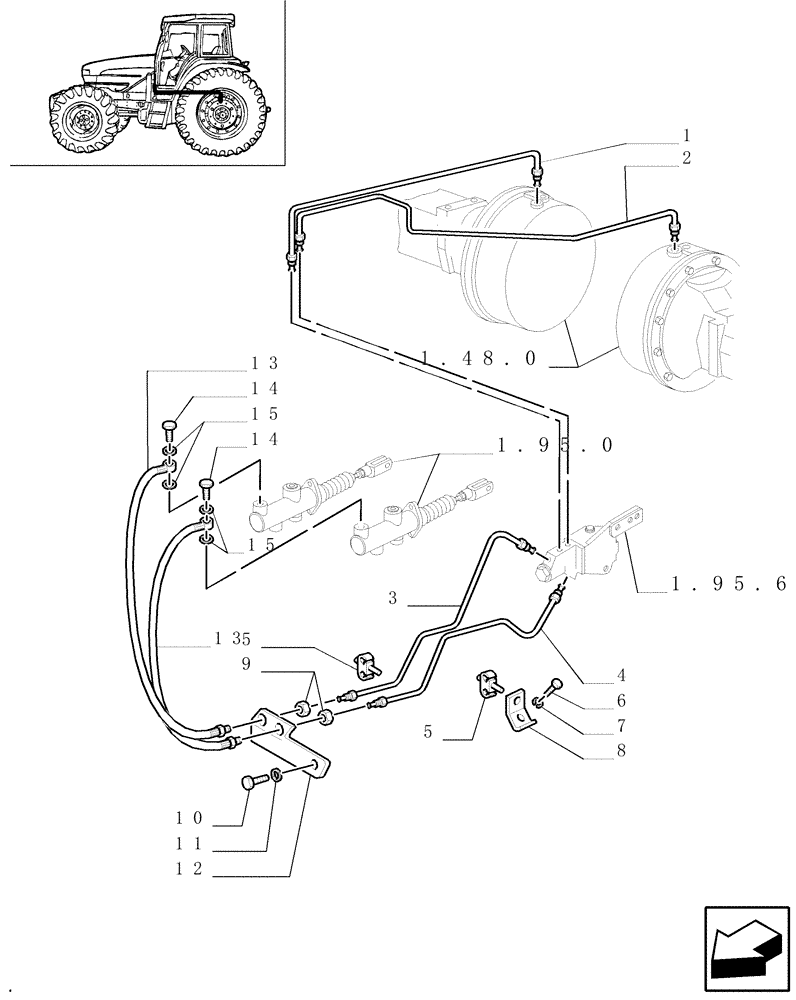

Запчасти Case IH JX70U (1.68.5) - BRAKE PIPING - 2 WD (05) - REAR AXLE

1

5129305

TUBE

RH

1шт.

2

5169603

TUBE

LH

1шт.

3

5169002

TUBE

RH

1шт.

4

5169004

FLEXIBLE HOSE

LH

1шт.

5

14575380

CLIP,4.8mm ID

4шт.

6

15540024

BOLT,Hex, M12 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

7

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

8

5169636

BRACKET

1шт.

9

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

10

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

12

5173862

BRACKET

1шт.

13

5155700

HOSE,4.75mm ID x 315.00mm

2шт.

14

5155704

BANJO BOLT

M12X1.25X22

2шт.

15

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X17X1.5

4шт.
