Запчасти Case IH JX70U (1.65.5[01]) - PARKING BRAKE - 2WD (05) - REAR AXLE

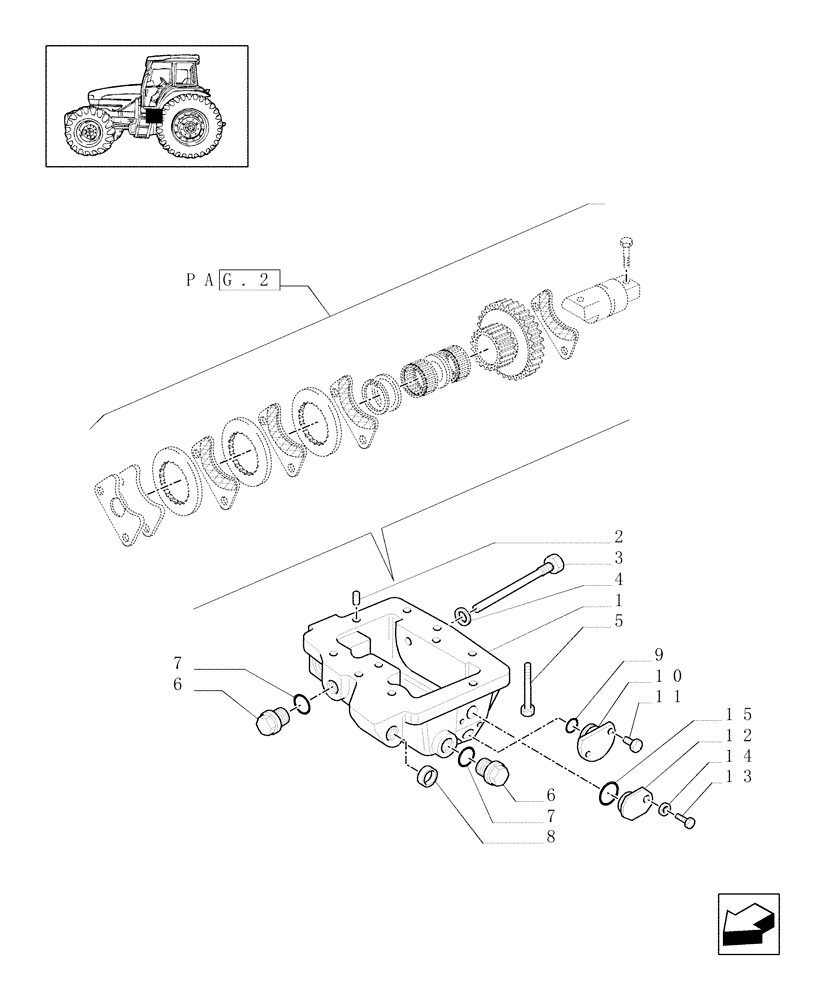

Схема запчастей Case IH JX70U - (1.65.5[01]) - PARKING BRAKE - 2WD (05) - REAR AXLE
7
5
15
6
10
9
14
8
3
11
13
1
6
pag.2
4
12
2
7

Артикул

Название

Примечание

Количество

1

5167277

SUPPORT

JX70U JX80U JX90U

1шт.

1

5181714

SUPPORT

JX100U

1шт.

2

10839810

DOWEL,12mm OD x 18mm L

M12 x 18

1шт.

3

5123396

BOLT,Hex, M12 x 1.25 x 116mm

M12X1.25X116

2шт.

4

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12X17X1.5

2шт.

5

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

15541131

SCREW,Hex, M12 x 1.25 x 65mm, Cl 10.9

1шт.

5

15541624

SCREW,Hex, M12 x 1.25 x 100mm, Cl 8.8

3шт.

6

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

2шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

8

14328801

PLUG,M22, Tapered

1шт.

9

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

11

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

JX70U, JX80U, JX90U

2шт.

10

5171837

PLUG,17.3mm ID x 42mm OD x 7.5mm Thk

JX100U

1шт.

11

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

JX100U

2шт.

12

5164036

PLUG

JX100U

1шт.

13

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

JX100U

1шт.

14

10615474

LOCK WASHER,Ext Tooth, M6 x 11 x 0.7 Thk

JX100U

1шт.

15

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

JX100U

1шт.

Выбрано товаров: 19
