(1.40.0/126[01]) - (VAR.422) VERSION FOR JAPAN - POWER STEERING CYLINDER, PARTS

Запчасти Case IH JX70U (1.40.0/126[01]) - (VAR.422) VERSION FOR JAPAN - POWER STEERING CYLINDER, PARTS (04) - FRONT AXLE & STEERING

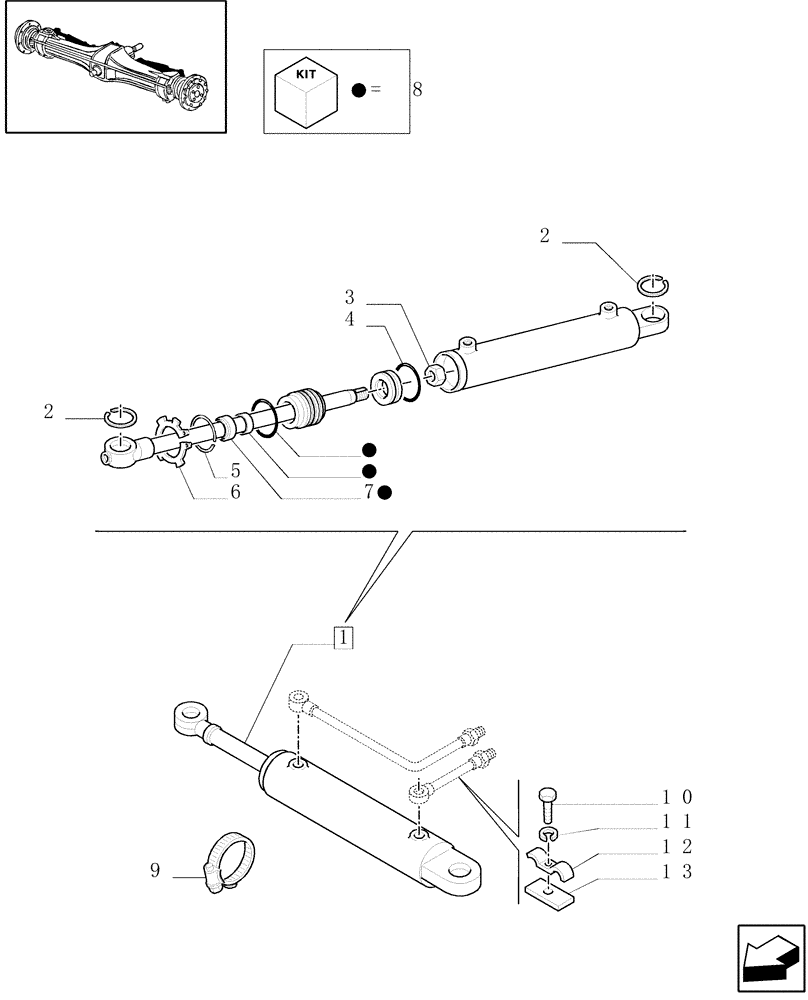

Схема запчастей Case IH JX70U - (1.40.0/126[01]) - (VAR.422) VERSION FOR JAPAN - POWER STEERING CYLINDER, PARTS (04) - FRONT AXLE & STEERING
11
10
8
4
8
9
7
12
8
2
8
6
5
1
3
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5189887

STEERING CYLINDER,Double Acting, 22mm Rod, 128mm Stroke

1шт.

2

5190903

LOCKING RING

2шт.

3

15504021

NUT,M16 x 1.5

1шт.

4

5190909

SEAL

1шт.

5

5190912

LOCKING RING

1шт.

6

5190907

SNAP RING

1шт.

7

5190911

SEAL

1шт.

8

5190591

SEAL KIT

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

12

4999554

CLAMP,2 Hoses

1шт.

13

5138294

SUPPORT

1шт.
