(1.40.0/102) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLINDERS 30-40 KM/H - HALF SHAFTS

Запчасти Case IH JX70U (1.40.0/102) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLINDERS 30-40 KM/H - HALF SHAFTS (04) - FRONT AXLE & STEERING

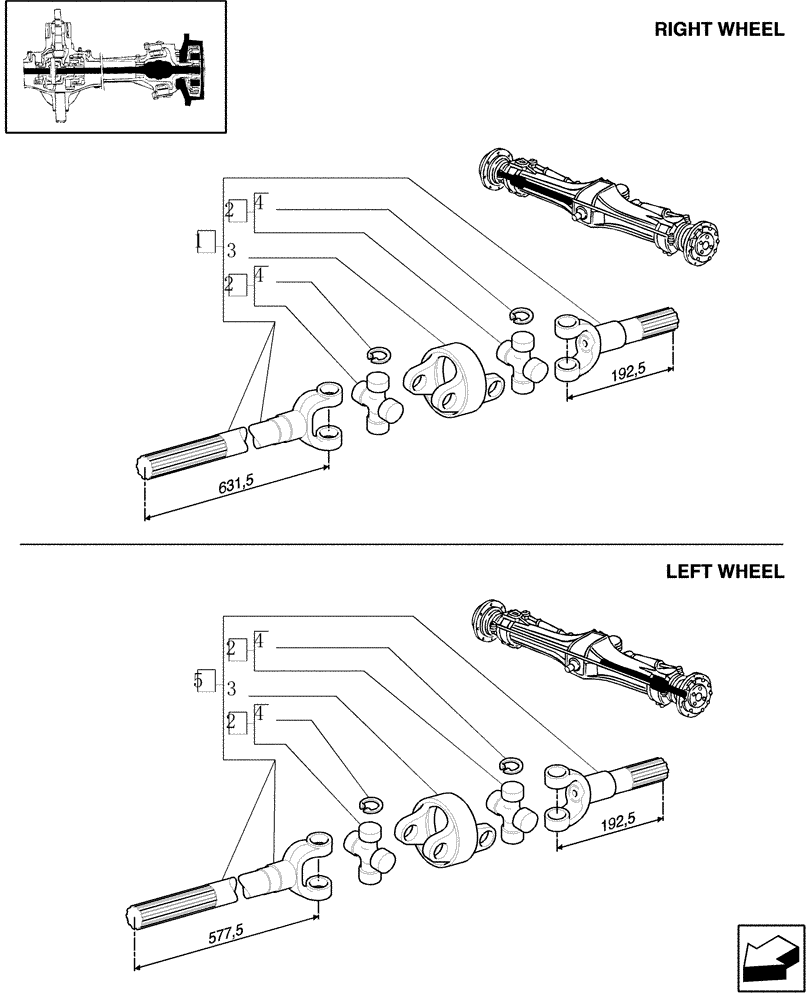

Схема запчастей Case IH JX70U - (1.40.0/102) - (VAR.304-304/1) FRONT AXLE WITH 2 HYDR. LOCKING CYLINDERS 30-40 KM/H - HALF SHAFTS (04) - FRONT AXLE & STEERING
2
4
2
3
4
4
4
2
2
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5186664

AXLE-SHAFT, ARTICULA

1шт.

2

5191024

SPIDER

4шт.

3

5191027

YOKE

Universal Joint

2шт.

4

11058276

SNAP RING,M24, Int

16шт.

5

5186663

ARTICULATED SHAFT

1шт.

Выбрано товаров: 5
