Запчасти Case IH JX70U (1.40.0/02[01]) - FRONT AXLE - STEERING KNUCKLES-HUBS-4WD (04) - FRONT AXLE & STEERING

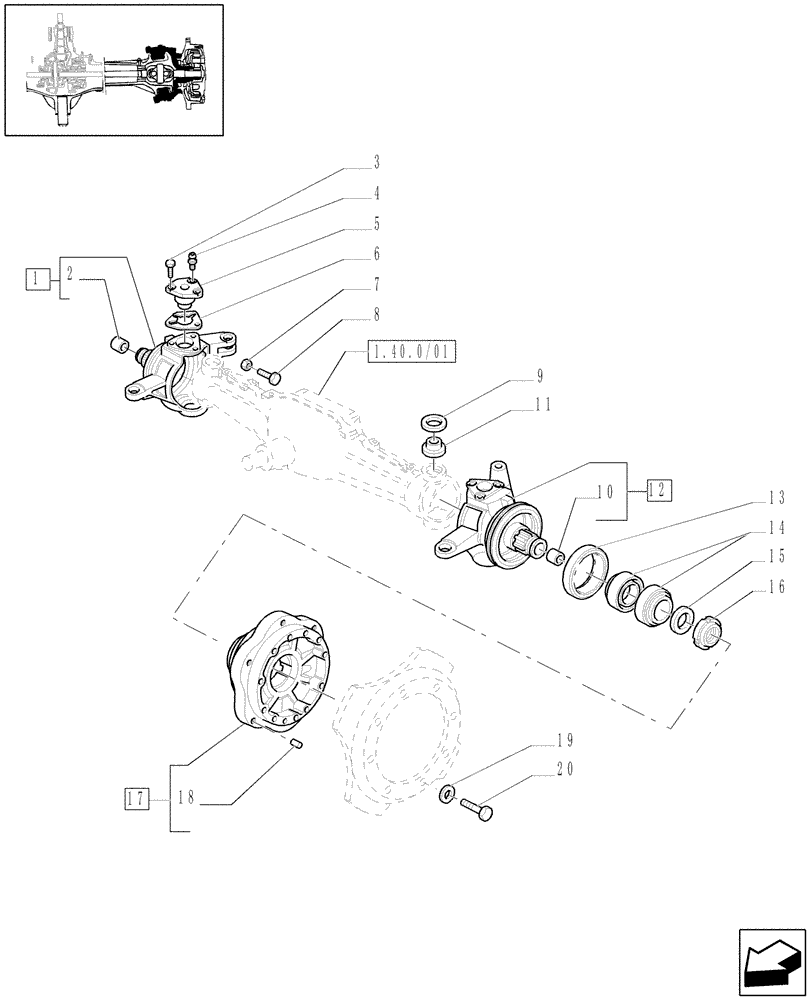

Схема запчастей Case IH JX70U - (1.40.0/02[01]) - FRONT AXLE - STEERING KNUCKLES-HUBS-4WD (04) - FRONT AXLE & STEERING
12
8
14
10
1
20
7
2
3
1.40.0/01
5
9
13
4
17
6
18
16
15
11
19

Артикул

Название

Примечание

Количество

1

5173285

KNUCKLE

RH, ASSY, JX80U, Serial Range: -C5479

1шт.

1

5173287

STUB AXLE/STEERING S

RH, ASSY, JX70U, Serial Range: -C5479

1шт.

1

87538046R

REMAN-AXLE

JX70U CASE IH TRACTOR, RH, ASSY, JX70U, Serial Range: -C5479 (5/02-), Reman for New PN 5173287

1шт.

1

87538046C

CORE-AXLE

Return Number

1шт.

1

87538049

KNUCKLE,RH

RH, ASSY, JX80U, Start Serial: D5479

1шт.

1

87538046

KNUCKLE,RH

RH, ASSY, JX70U, Start Serial: D5479

1шт.

1

87538046R

REMAN-AXLE

JX70U CASE IH TRACTOR, RH, ASSY, Start Serial: D5479 (5/02-)

1шт.

1

87538046C

CORE-AXLE

Return Number

1шт.

2

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

1шт.

3

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

4

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

4шт.

5

5165271

BALL STUD,M14 x 1.5 x 46mm

BALL PIN

4шт.

6

5100789

SHIM,53mm ID x 86mm OD x 0.1mm Thk

1шт.

6

5100790

SHIM,53mm ID x 75mm OD x 0.15mm Thk

1шт.

7

10717611

NUT,Thin, M18 x 2.5, Cl 04

2шт.

8

5167638

SCREW

M18X105

2шт.

9

5122548

SEAL,50mm ID x 62mm OD x 7mm Thk

50 x 62 x 7

4шт.

10

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

1шт.

11

24903780

TAPERED BEARING,30mm ID x 55mm OD x 17mm W

30X55X17

4шт.

12

5173281

STUB AXLE/STEERING S

LH, Serial Range: -C5479

1шт.

12

87538023R

REMAN-AXLE

JX70U, JX80U, Both CASE IH TRACTOR, LH, Serial Range: -C5479 (5/02-), Reman for New PN 5173281

1шт.

12

87538023C

CORE-AXLE

Return Number

1шт.

12

87538023

KNUCKLE,LH

, Start Serial: D5479

1шт.

12

87538023R

REMAN-AXLE

JX70U, JX80U, Both CASE IH TRACTOR, Start Serial: D5479 (5/02-)

1шт.

12

87538023C

CORE-AXLE

Return Number

1шт.

13

5184122

SEAL,130mm ID x 154mm OD x 18mm Thk

154X130X15, Serial Range: -C5479

2шт.

13

47123727

SEAL,130mm ID x 160mm OD x 16mm Thk

, Start Serial: D5479

1шт.

14

5164622

TAPERED BEARING,70mm ID x 110mm OD x 21mm W

70X110X21

4шт.

15

5166183

SPACER,70.1mm ID x 80mm OD x 12.18mm L

2шт.

16

5165277

RING NUT,Hex, M70 x 2, Cl 8.8

RH Thread, M70x2

2шт.

16

5169116

RING NUT,Hex, M70 x 2, Cl 8.8

LH Thread, M70x2

1шт.

17

5169118

HUB

, Serial Range: -C5479

2шт.

17

87542225

HUB

, Start Serial: D5479

2шт.

18

4988170

PIN,10mm OD x 20mm L

M10 x 20

4шт.

19

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

16шт.

20

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

16шт.

Выбрано товаров: 36
