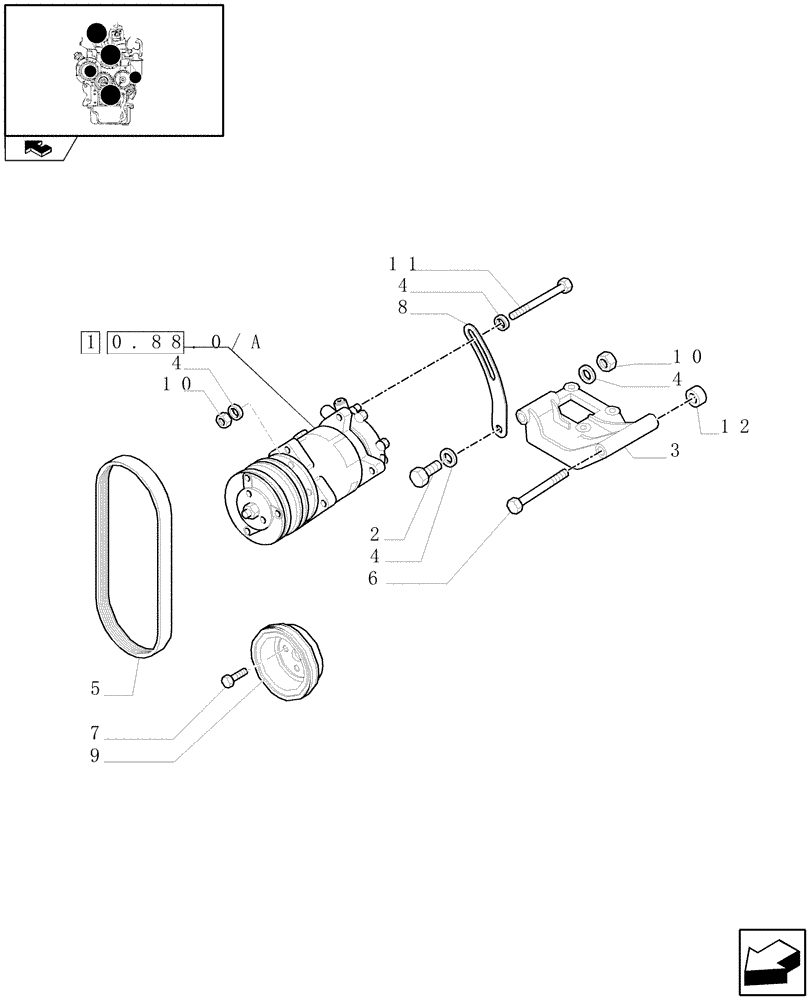

Запчасти Case IH JX1100U (0.88.0) - (VAR.641-641/1) AIR CONDITIONING - BELTS & PULLEYS - COMPRESSOR (01) - ENGINE

1

47132887

AIRCOND. COMPRESSOR

1шт.

47132887R

REMAN-COMPRESSOR

JX1070U, JX1080U, JX1090U, JX1100U All (1/04-)

1шт.

47132887C

CORE-COMPRESSOR

Return Number

1шт.

2

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

1шт.

3

47129818

SUPPORT

1шт.

4

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

6шт.

5

47129821

BELT

1шт.

6

15972424

SCREW,Hex, M10 x 1.25 x 130mm, Cl 8.8

1шт.

7

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

8

47129819

TENSIONER

1шт.

9

47129820

PULLEY

1шт.

10

12164714

NUT,M10 x 1.25, Cl 8

2шт.

11

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

3шт.

12

5116930

SPACER,11mm ID x 20mm OD x 9.9mm L

1шт.
