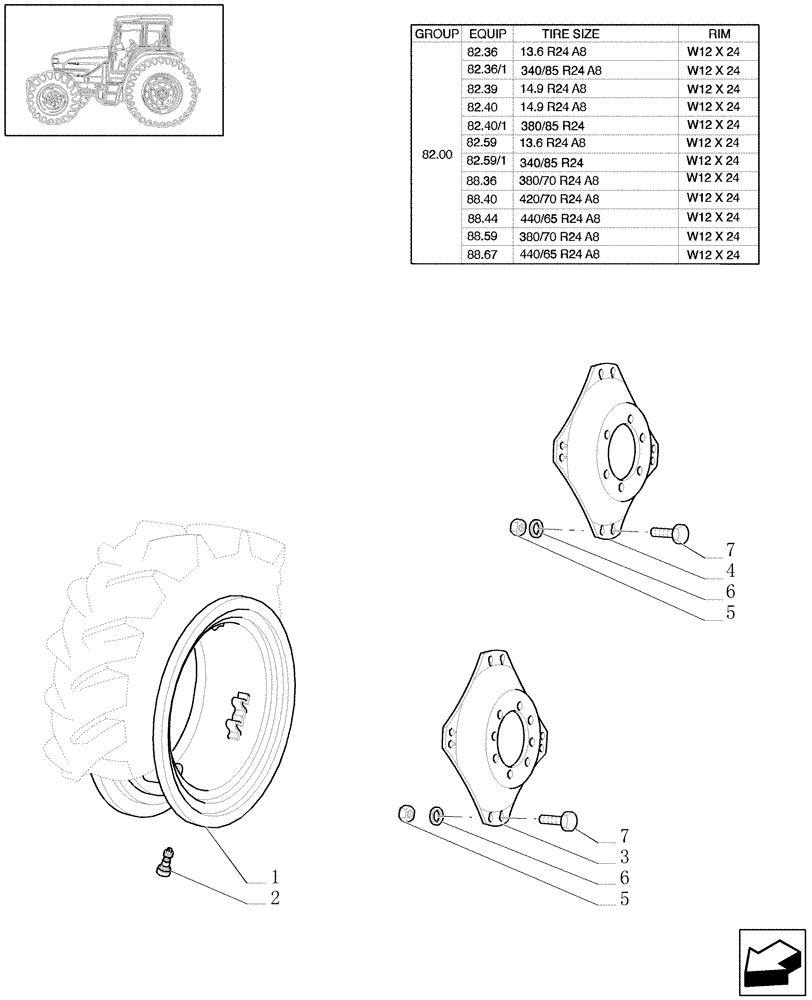

Запчасти Case IH JX1100U (82.00[03]) - DRIVE WHEEL RIM (4WD) (11) - WHEELS/TRACKS

1

47128175

RIM,W12 x 24, 8 Bolts, CASE Silver

W12 x 24

2шт.

2

85700224

VALVE STEM

2шт.

3

47128164

WHEEL DISC

2шт.

3

87357860

WHEEL DISC,515mm Dia, 8 Bolts , Case IH Silver

2шт.

4

47128168

WHEEL DISC,616mm DIA, 6 Bolts, CASE Silver

JX1080U

2шт.

5

10790524

NUT,M16 x 1.5

16шт.

6

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

7

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.
