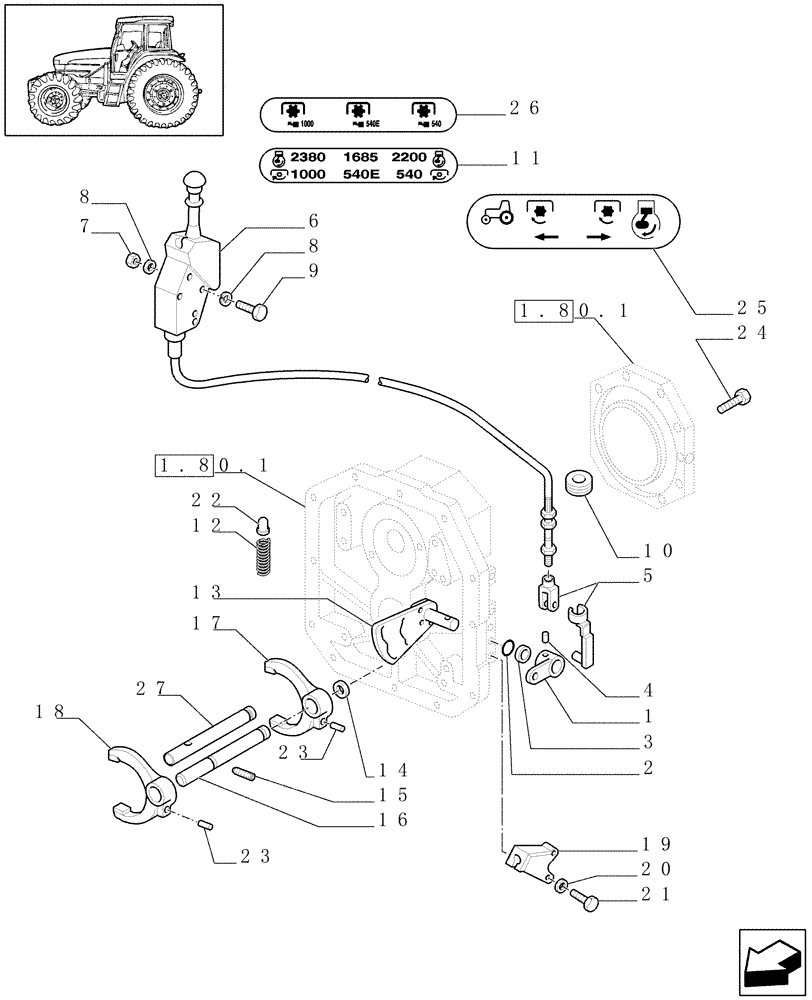

Запчасти Case IH JX1100U (1.96.3/02) - (VAR. 729/1) SYNCHRO MESH GEARED POWER TAKE-OFF 540 - 750 - 1000 RPM - CONTROL PARTS (10) - OPERATORS PLATFORM/CAB

1

5180999

LEVER

1шт.

2

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

3

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

4

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

5

5132588

CLEVIS

1шт.

6

5185988

FLEXIBLE CONTROL

1шт.

7

15896214

NUT,M6, Cl 8

3шт.

8

14496404

WASHER,M6 x 12 x 2 Thk

6шт.

9

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

3шт.

10

10398580

GROMMET,22mm ID x 30mm GRV ø x 38mm OD x 13mm Thk

1шт.

11

82007808

DECAL

, Serial Range: -C5126

1шт.

12

5128251

SPRING,Compression, 8.5mm OD x 20mm L

1шт.

13

5162792

SELECTOR

1шт.

14

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

15

13798621

SET SCREW,Hex Skt, M8 x 12mm, Cone Pt

1шт.

16

5162788

ROD

, Serial Range: -C6282

1шт.

17

5162814

SHIFTER FORK

1шт.

18

5162812

SHIFTER FORK

1шт.

19

5180998

BRACKET

1шт.

20

11198574

BELLEVILLE WASHER,Belleville, M10.5

1шт.

21

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

22

5150839

PAWL,8.5mm OD x 15.4mm L

1шт.

23

5154545

PIN,10mm OD x 25mm L

10X25

2шт.

24

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

25

47125541

DECAL

1шт.

26

87328485

DECAL

PTO Control, Start Serial: D5126

1шт.

27

87584138

ROD

, Start Serial: D6282

1шт.
